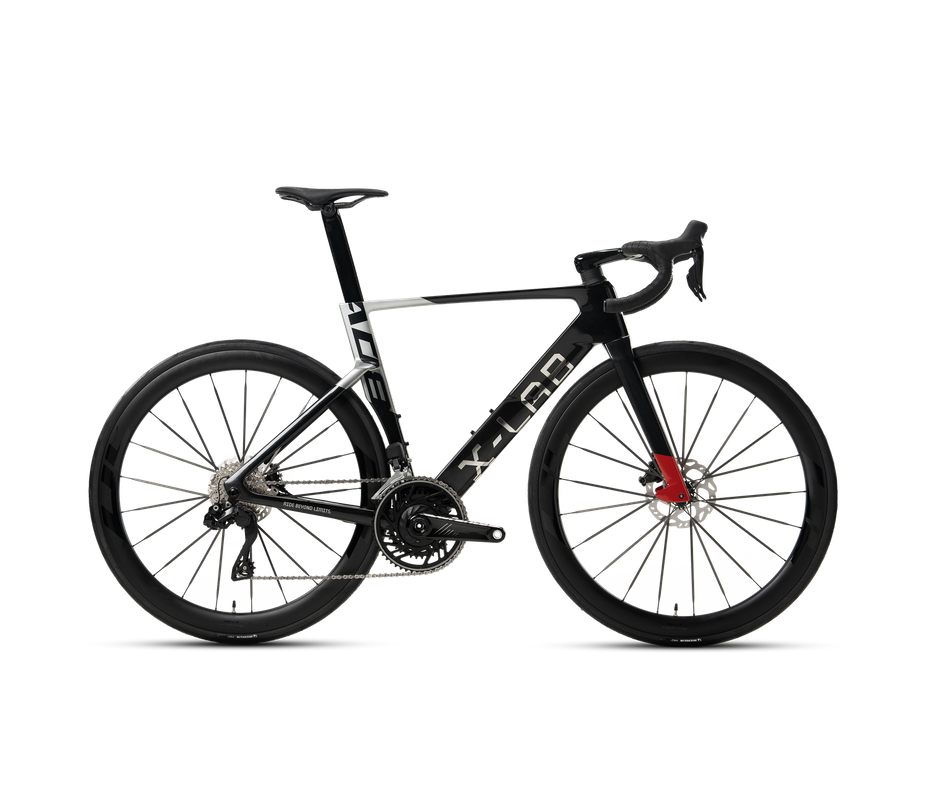

X-LAB AD8 105 Di2 Sunspot Red/Black
Description
Pure racing DNA, refined for the real world.
Real Speed, Real Roads
The AD8 is built for riders who measure their rides in efforts, not excuses. It unleashes race-bred aerodynamics that you can feel on everyday roads, from solo tempo days to fast group rides.
WorldTour DNA, Made Attainable
It’s the same exact frame design and geometry as the AD9, because speed doesn’t need reinvention. The AD8 brings the platform raced at the highest levels into a build meant for serious riders chasing their next upgrade.
T800 Carbon, Dialed for Performance
Engineered with Toray T800 carbon to hit the sweet spot: lightweight, stiff, and responsive, delivering that desirable aero advantage without the halo-bike price tag.
Key Features
Branta carbon crankset with integrated power meter + Apple Find My anti-theft technology
Shimano 105 Di2 groupset
Branta C45 UL carbon wheelset with carbon spokes | 1,330 g
XDS carbon frameset with Toray T800 | Full bike 7.41kg
Technical Specifications
| Model | AD8 |
| Frame | XDS Carbon Frame |
| Fork | XDS Carbon Fork, 100x12mm Thru-axle |
| Stem | Branta Carbon Integrated |
| Handlebar | |
| Seatpost | XDS Carbon Seatpost, Aero Shape |
| Rear Derailleur | Shimano 105 DI2 RD-R7150 |
| Front Derailleur | Shimano 105 DI2 FD-R7150 |
| Shifter | Shimano 105 ST-R7120 |
| Brakes | Shimano 105 BR-R7170 |
| Cassette | Shimano 105 CS-R7101, 11-34T |
| Crankset | Branta Carbon Powermeter Crankset, 52-36T, 29mm Aluminum Spindle |
| BB | T47 29mm |
| Rotors | Shimano SM-RT70, F:160mm R:160mm |
| Chain | Shimano CN-M7100 |
| Wheelset | Branta C45 UL, Carbon Spokes |
| Tires | Michelin Pro 5 700x28C |
| Saddle | Selle Italia SLR Boost, Carbon Rails |
| Weight | 7.41KG (Size L) |
| Frame | Size | XS | S | M | L | XL |
| A | Seat Tube Length (mm) | 470 | 495 | 515 | 540 | 565 |
| B | Top Tube Length (mm) | 504 | 523 | 540 | 559 | 579 |
| C | Head Tube Length (mm) | 105 | 118 | 130 | 148 | 171 |
| D | Seat Tube Angle (deg) | 75 | 75 | 74 | 74 | 73 |
| E | Head Tube Angle (deg) | 71 | 72 | 73 | 73 | 73 |
| F | Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 |
| G | Wheelbase (mm) | 970 | 978 | 982 | 992 | 1007 |
| H | Fork Rake/Offset (mm) | 48 | 48 | 43 | 43 | 43 |
| I | BB Drop (mm) | 72 | 72 | 70 | 70 | 70 |
| J | Stack (mm) | 505 | 520 | 534 | 553 | 575 |
| K | Reach (mm) | 371 | 379 | 387 | 395 | 405 |
| L | Front Center (mm) | 575 | 582 | 583 | 592 | 607 |
| Trail (mm) | 67 | 63 | 64 | 61 | 59 | |
| Components | Size | XS | S | M | L | XL |
| Stem | 90 | 90 | 100 | 100 | 120 | |
| Handlebar | 360 | 360 | 380 | 380 | 400 | |
| Crankset | 160 | 160 | 165 | 165 | 170 | |
| Seat Post | 300 | 300 | 300 | 300 | 300 |
