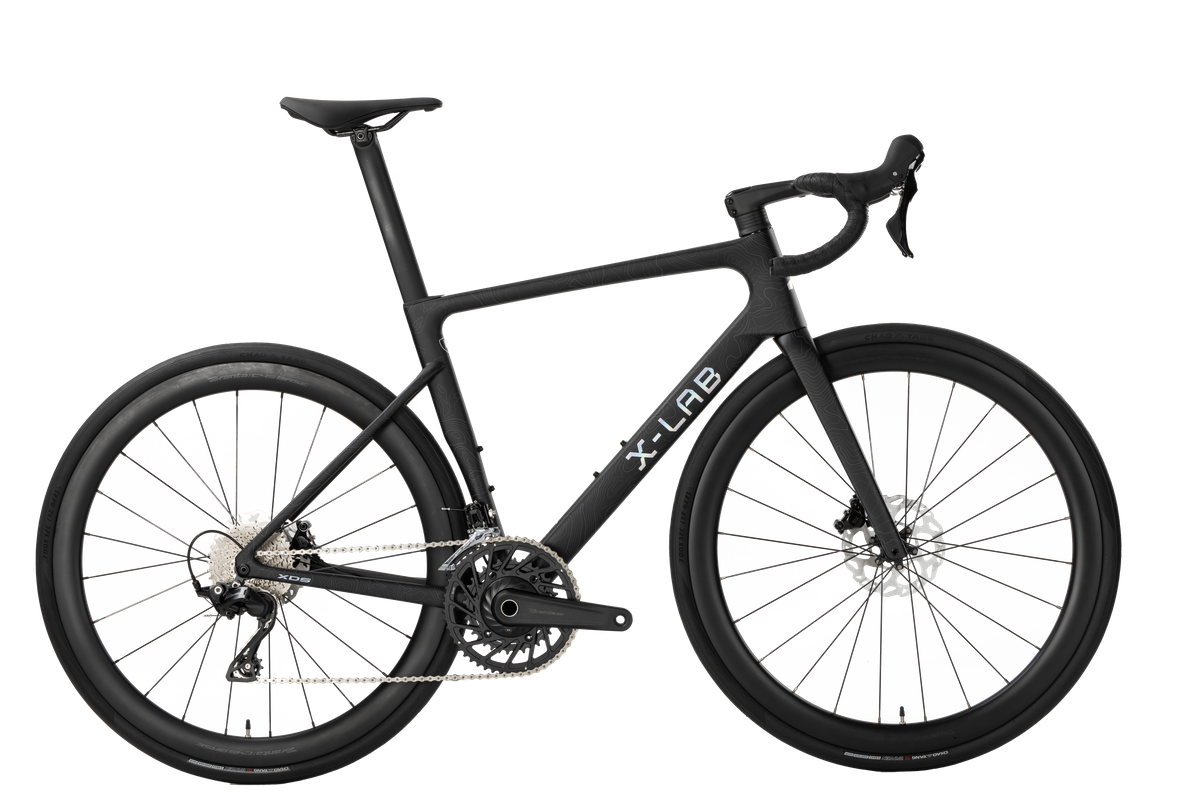

X-LAB RS7 105 12sp Singularity Black
Description
Race-inspired speed, all-road performance, built for the everyday ride.
X-LAB RS7
The RS7 blends aerodynamic efficiency with everyday rideability.
Its performance-oriented geometry and refined carbon construction deliver speed when you push, while maintaining the comfort and stability needed for longer rides.
Equally at home on weekend training routes or daily commutes, the RS7 offers a balanced performance platform that riders return to again and again.
Carbon Confidence, Every Day
The RS7 is the road bike that makes true performance feel approachable for all riders, boasting full carbon responsiveness, drop-bar control, and a geometry that’s ready for everything from country roads to your fastest group ride.
Topography-Inspired Colorways
Inspired by the contours of iconic mountain terrains, RS7’s finishes aren’t just paint; they’re a nod to the roads that shape riders and the climbs that define seasons.
Making Upgrades Simply Standard
With a Branta alloy crankset featuring a built-in power meter and Find My connectivity, RS7 delivers the upgrades riders usually pay extra for, all baked in from day one.
Key Features
Branta C45 Base carbon wheelset
Shimano 105 groupset
Aero carbon seatpost
Full carbon frame and fork | Full bike 8.49 kg
Technical Specifications
FRAME
XDS Carbon Frame, Toray T-700
FORK
XDS Carbon Fork, Toray T-700, 100x12mm Thru-axle
HANDLEBAR / STEM
Branta Carbon Integrated
SEATPOST
XDS Carbon Seatpost, Aero Profile
REAR DERAILLEUR
Shimano 105 RD-R7100
FRONT DERAILLEUR
Shimano 105 FD-R7100
SHIFTERS
Shimano 105 ST-R7120
BRAKES
Shimano 105 BR-R7170
CASSETTE
CS-R9012, 12-Speed, 11-34T
CRANKSET
Branta Alloy Power Meter Crankset, 52-36T,
24mm Steel Spindle, Apply Find My Anti-Theft Technology
BOTTOM BRACKET
BSA 24mm
ROTORS
Shimano SM-RT70, F:160mm R:160mm
CHAIN
SUMC SX12
WHEELSET
Branta C45 Base Carbon Wheelset, Stainless Steel Spokes
TIRES
Branta R332, 700x32C, 60TPI
SADDLE
Branta R302, Steel Rails
WEIGHT
8.49 kg / 18.67 lbs (Size L)
SIZE OPTIONS
XS / S / M / L / XL / XXL
| Frame | Size | XS | S | M | L | XL | XXL |
| A | Seat Tube Length (mm) | 420 | 440 | 470 | 490 | 510 | 530 |
| B | Top Tube Length (mm) | 500 | 515 | 531 | 550 | 570 | 590 |
| C | Head Tube Length (mm) | 130 | 135 | 145 | 160 | 175 | 200 |
| D | Seat Tube Angle (deg) | 75 | 75 | 75 | 74 | 74 | 74 |
| E | Head Tube Angle (deg) | 70 | 72 | 73 | 73 | 73 | 74 |
| F | Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| G | Wheelbase (mm) | 973 | 976 | 982 | 993 | 1006 | 1016 |
| H | Fork Rake/Offset (mm) | 55 | 55 | 45 | 45 | 45 | 45 |
| I | BB Drop (mm) | 72 | 72 | 70 | 70 | 68 | 68 |
| J | Stack (mm) | 526 | 535 | 546 | 561 | 574 | 602 |
| K | Reach (mm) | 360 | 370 | 380 | 390 | 400 | 412 |
| L | Front Center (mm) | 574 | 577 | 581 | 593 | 606 | 616 |
| O | Stand-over Height (mm) | 737 | 752 | 772 | 789 | 807 | 830 |
| Trail (mm) | 65 | 58 | 62 | 60 | 58 | 52 | |
| Components | XS | S | M | L | XL | XXL | |
| Stem | 90 | 100 | 110 | 110 | 120 | 120 | |
| Handlebar | 360 | 360 | 380 | 380 | 400 | 400 | |
| Crankset | 165 | 165 | 170 | 170 | 172.5 | 172.5 | |
| Seat Post | 300 | 300 | 350 | 350 | 400 | 400 |
