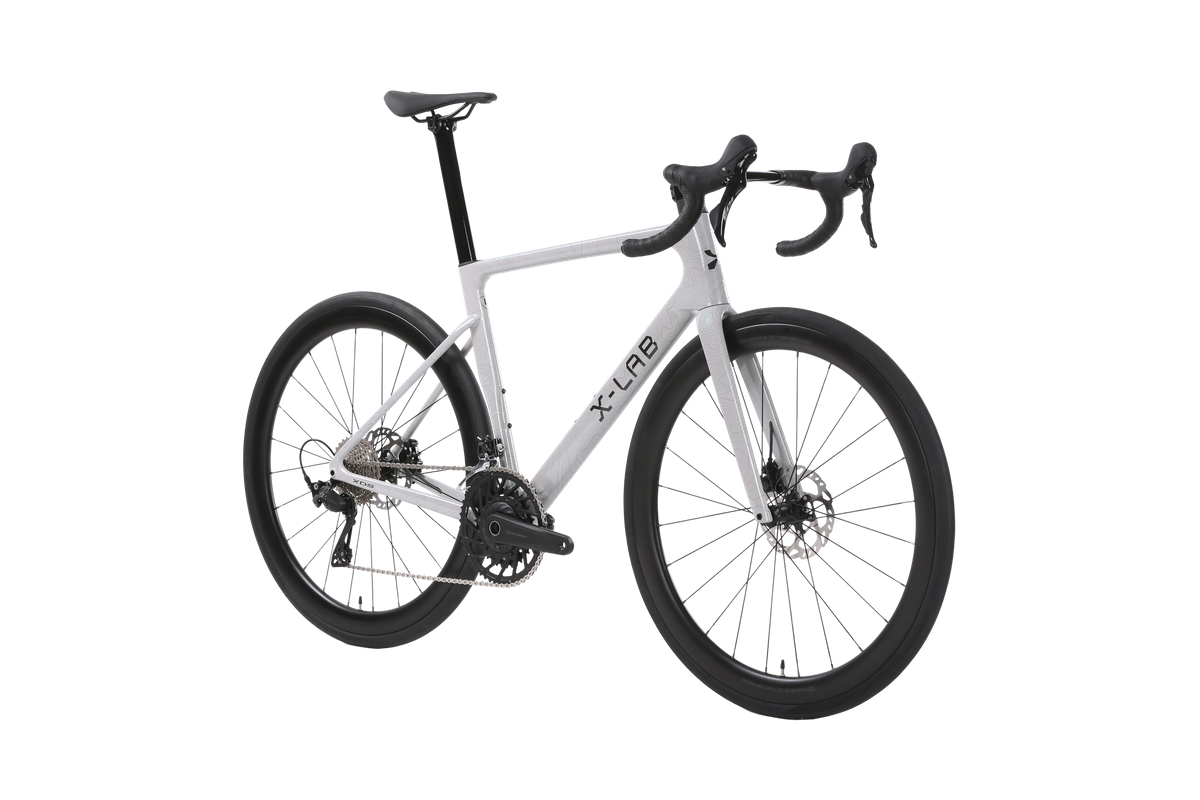

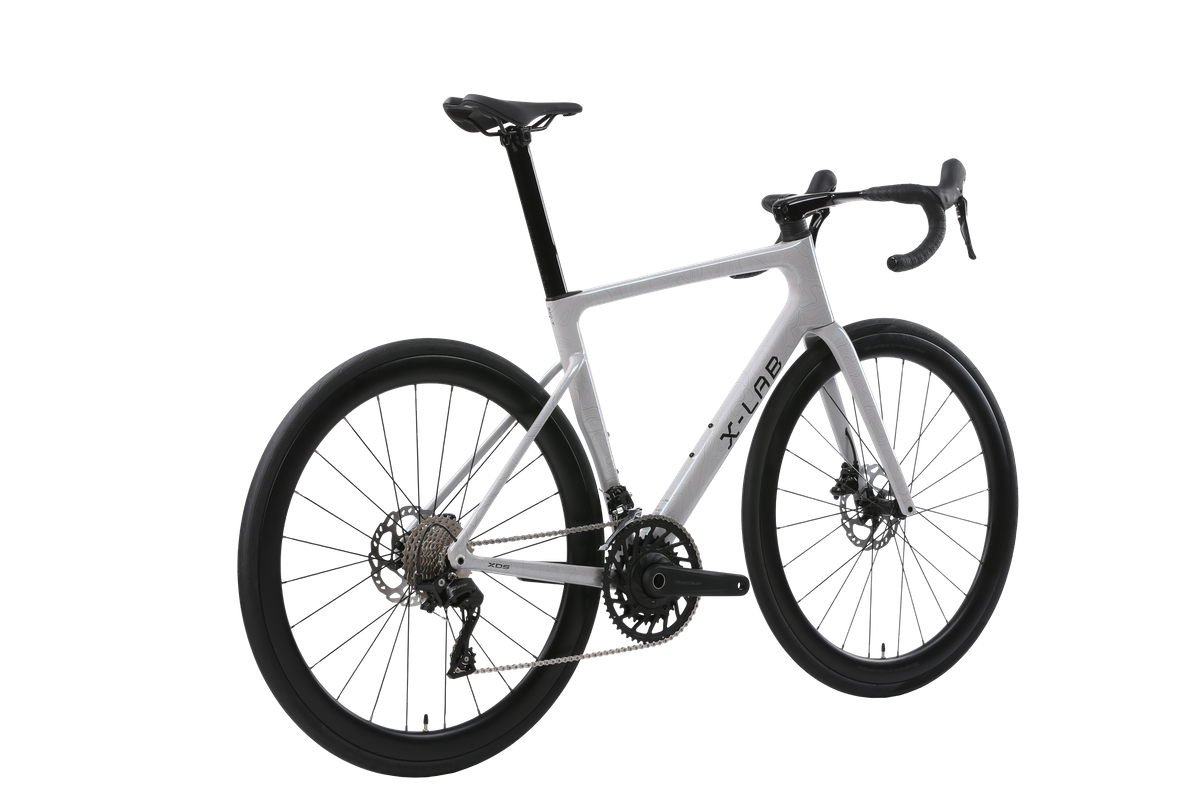

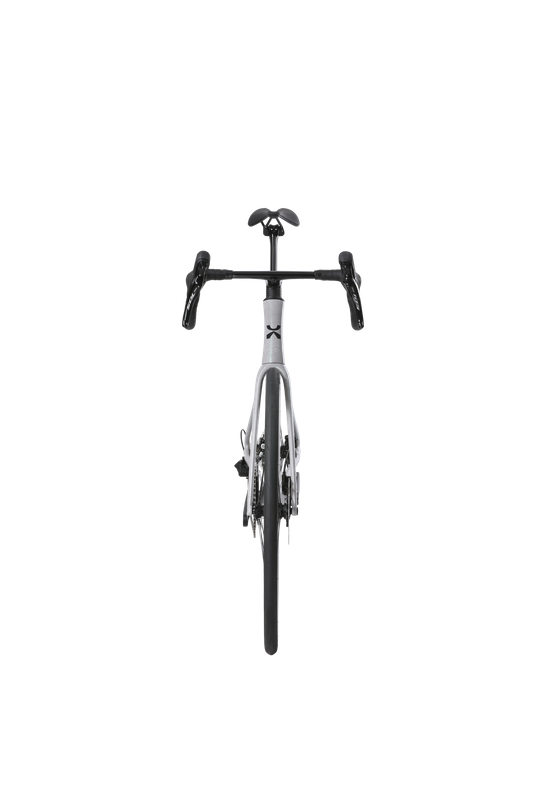

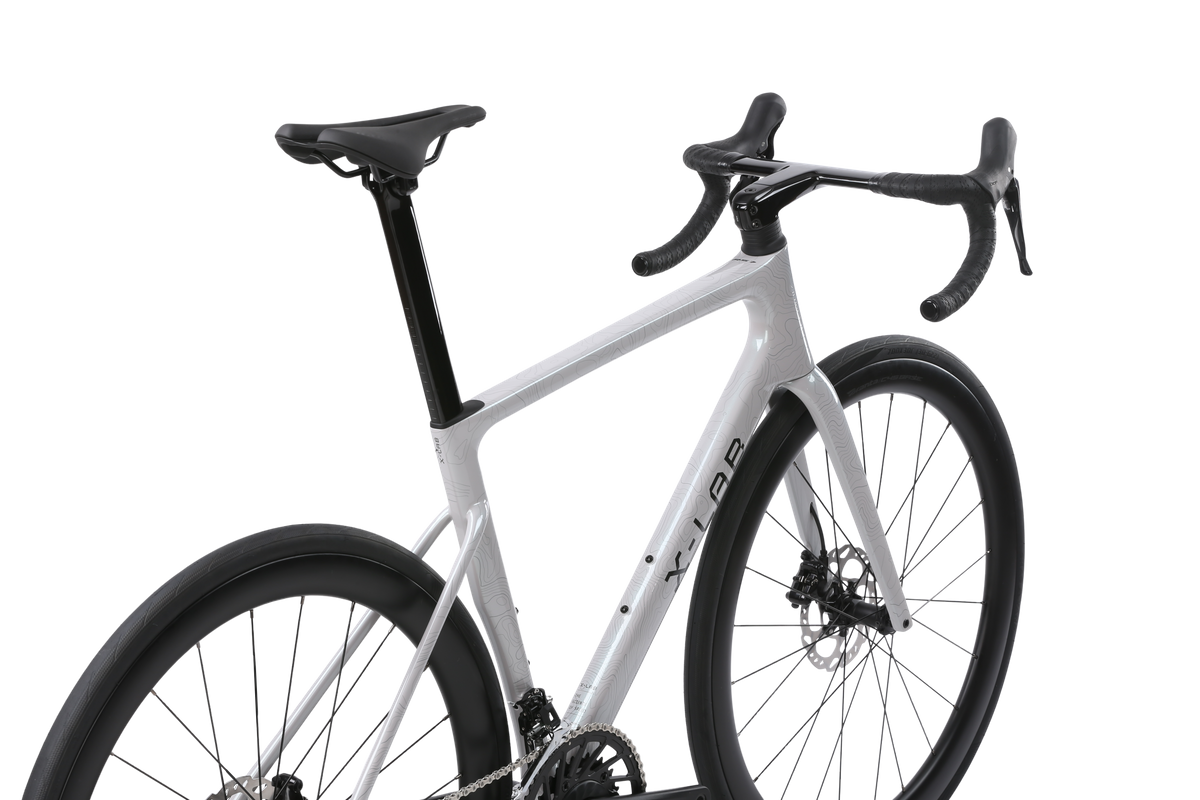

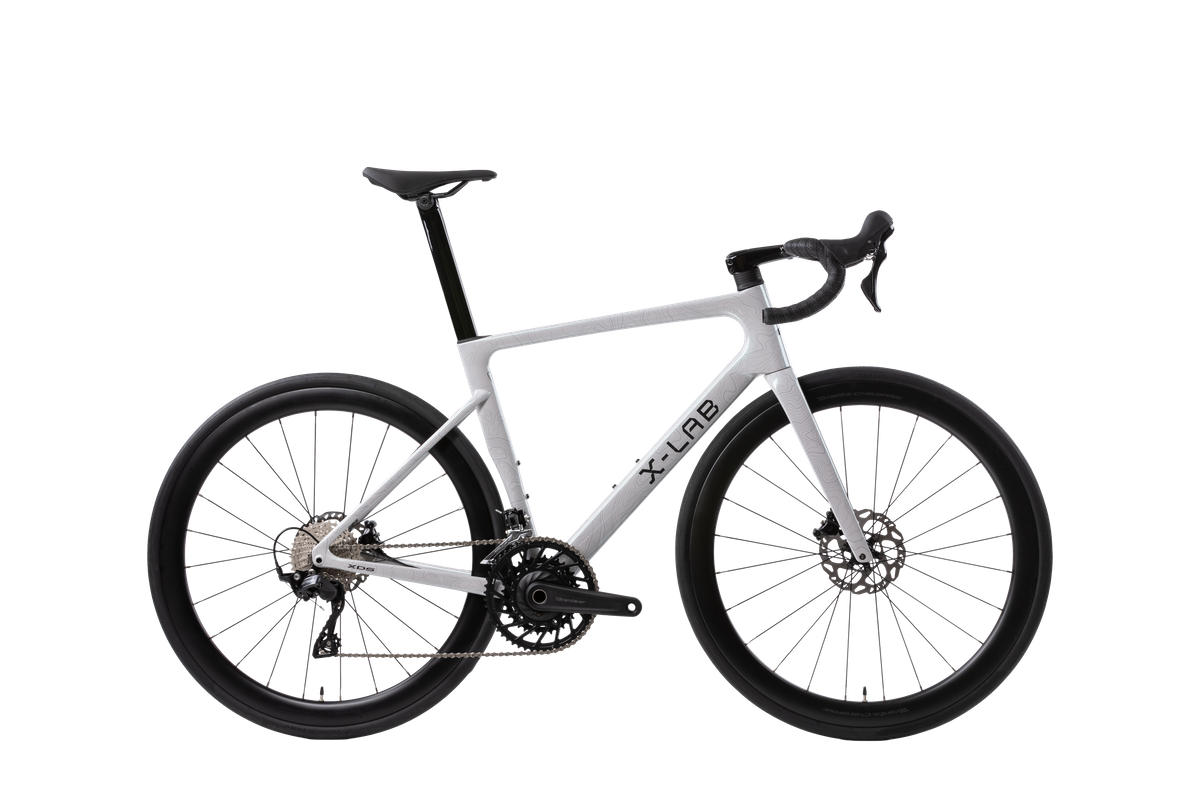

X-LAB RS7 105 12sp Angel Wing White
Description
| Model | RS7 | ||||||
| Frame | XDS Carbon Frame | ||||||
| Fork | XDS Carbon Fork, 100x12mm Thru-axle | ||||||
| Stem | Branta Carbon Integrated | ||||||
| Handlebar | |||||||
| Seatpost | XDS Carbon Seatpost, Aero Shape | ||||||
| Rear Derailleur | Shimano 105 RD-R7100 | ||||||
| Front Derailleur | Shimano 105 FD-R7100 | ||||||
| Shifter | Shimano 105 ST-R7120 | ||||||
| Brakes | Shimano 105 BR-R7170 | ||||||
| Cassette | CS-R9012, 12-Speed, 11-34T | ||||||
| Crankset | Branta Alloy Powermeter Crankset, 52-36T, 24mm Steel Spindle | ||||||
| BB | BSA 24mm | ||||||
| Rotors | Shimano SM-RT70, F:160mm R:160mm | ||||||
| Chain | SUMC SX12 | ||||||
| Wheelset | Branta C45 Base, Steel Spokes | ||||||
| Tires | Branta R332, 700x32C, 60TPI | ||||||
| Saddle | Branta R302, Steel Rails | ||||||
| Weight | 8.49KG (Size L) | ||||||

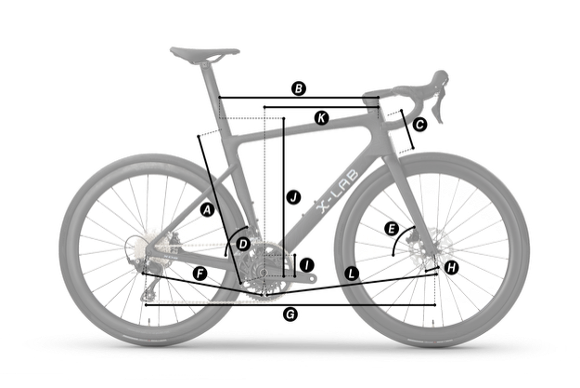

| Frame | Size | XS | S | M | L | XL | XXL |
| A | Seat Tube Length (mm) | 420 | 440 | 470 | 490 | 510 | 530 |
| B | Top Tube Length (mm) | 500 | 515 | 531 | 550 | 570 | 590 |
| C | Head Tube Length (mm) | 130 | 135 | 145 | 160 | 175 | 200 |
| D | Seat Tube Angle (deg) | 75 | 75 | 75 | 74 | 74 | 74 |
| E | Head Tube Angle (deg) | 70 | 72 | 73 | 73 | 73 | 74 |
| F | Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| G | Wheelbase (mm) | 973 | 976 | 982 | 993 | 1006 | 1016 |
| H | Fork Rake/Offset (mm) | 55 | 55 | 45 | 45 | 45 | 45 |
| I | BB Drop (mm) | 72 | 72 | 70 | 70 | 68 | 68 |
| J | Stack (mm) | 526 | 535 | 546 | 561 | 574 | 602 |
| K | Reach (mm) | 360 | 370 | 380 | 390 | 400 | 412 |
| L | Front Center (mm) | 574 | 577 | 581 | 593 | 606 | 616 |
| O | Stand-over Height (mm) | 737 | 752 | 772 | 789 | 807 | 830 |
| Trail (mm) | 65 | 58 | 62 | 60 | 58 | 52 | |
| Components | XS | S | M | L | XL | XXL | |
| Stem | 90 | 100 | 110 | 110 | 120 | 120 | |
| Handlebar | 360 | 360 | 380 | 380 | 400 | 400 | |
| Crankset | 165 | 165 | 170 | 170 | 172.5 | 172.5 | |
| Seat Post | 300 | 300 | 350 | 350 | 400 | 400 |
