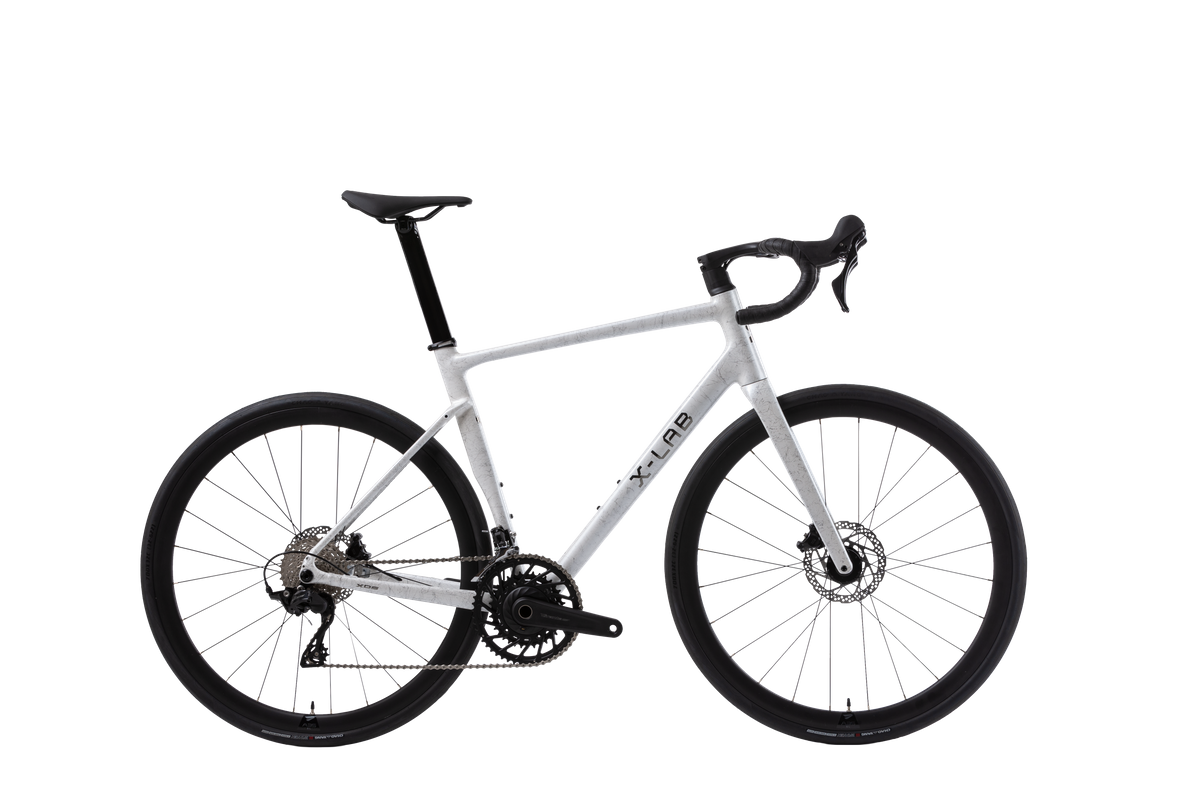

X-LAB RS5 105 12sp Wavebreaker White
Description
Balanced comfort and function, for wherever the road takes you.
X-LAB RS5
The RS5 delivers the X-LAB riding experience in a versatile and approachable form.
Built with durable X6 aluminum alloy and a semi-integrated cockpit, it offers reliable performance, confident handling, and lasting comfort.
Whether you're discovering the sport or simply enjoying the ride, the RS5 is designed to make every mile feel smooth, responsive, and rewarding.
Integrated Design, Real-World Road Bike
RS5 brings the X-LAB fluent design and engineering language to an alloy platform, with a clean cockpit integration paired with Shimano 105 performance so the bike looks and rides like it belongs far above its category.
Alloy Done the X-LAB Way
A precision-engineered alloy frame delivers the kind of durability and ride quality riders trust. The RS5 is built for long miles, daily commutes, and everything in between.
Power + Security, Standard
Branta’s in-house alloy crankset integrates a power meter and Find My tech, turning the RS5 into a smarter bike to train on, track, and own, without asking riders to bolt on costly extras.
Key Features
Shimano groups
38mm tire clearance
Semi-integrated alloy cockpit
Aero carbon seatpost
Technical Specifications
FRAME
XDS X6 Alloy Frame, UDH Compatible
FORK
XDS Carbon Fork, 100x12mm Thru-axle
HANDLEBAR / STEM
Branta Alloy Integrated
SEATPOST
XDS Carbon Seatpost, Aero Profile
REAR DERAILLEUR
Shimano 105 RD-R7100
FRONT DERAILLEUR
Shimano 105 FD-R7100
SHIFTERS
Shimano 105 ST-R7120
BRAKES
Shimano 105 BR-R7170
CASSETTE
CS-R9012, 12-Speed, 11-34T
CRANKSET
Branta Alloy Power Meter Crankset, 52-36T,
24mm Steel Spindle, Apply Find My Anti-Theft Technology
BOTTOM BRACKET
BSA 24mm
ROTORS
Shimano SM-RT56-S, F:160 R:160mm
CHAIN
SUMC SX12
WHEELSET
Branta A35 SL, Alloy Rims
TIRES
Branta R332, 700x32C, 60TPI
SADDLE
Branta R302, Steel Rails
WEIGHT
9.54 kg / 21.03 lbs (Size L)
SIZE OPTIONS
XS / S / M / L / XL

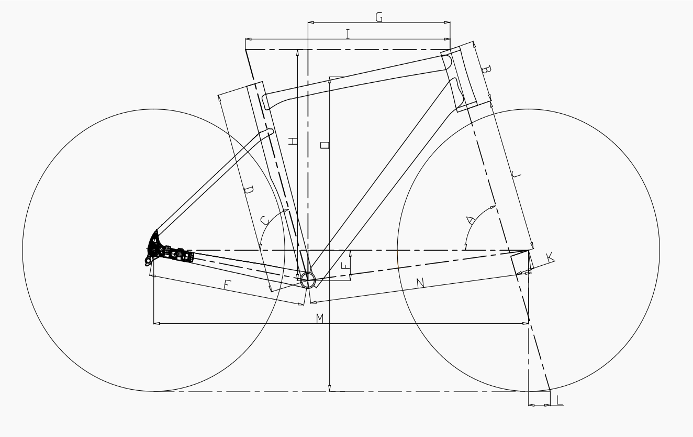

| Frame | Size | XS | S | M | L | XL |
| A | Head Tube Angle (deg) | 71 | 72 | 73 | 73 | 73 |
| B | Head Tube Length (mm) | 115 | 135 | 155 | 180 | 205 |
| C | Seat Tube Angle (deg) | 75 | 74 | 74 | 73 | 73 |
| D | Seat Tube Length (mm) | 440 | 480 | 510 | 540 | 560 |
| E | Chainstay Length (mm) | 420 | 420 | 420 | 420 | 420 |
| F | BB Drop (mm) | 75 | 75 | 75 | 75 | 75 |
| G | Reach (mm) | 371 | 375 | 381 | 387 | 394 |
| H | Stack (mm) | 530 | 553 | 575 | 599 | 623 |
| I | Top Tube Length (mm) | 515 | 530 | 548 | 568 | 585 |
| J | Fork Length(mm) | 386 | 386 | 386 | 386 | 386 |
| K | Fork Rake/Offset (mm) | 50 | 50 | 50 | 50 | 50 |
| L | Trail (mm) | 71 | 65 | 58 | 58 | 58 |
| M | Wheelbase (mm) | 999 | 1001 | 1004 | 1018 | 1033 |
| N | Front Center (mm) | 590 | 592 | 596 | 609 | 624 |
| O | Stand-over Height (mm) | 725 | 758 | 784 | 810 | 831 |
| Components | Size | XS | S | M | L | XL |
| Stem | 80 | 80 | 100 | 100 | 100 | |
| Handlebar | 380 | 380 | 400 | 400 | 420 | |
| Crankset | 165 | 165 | 170 | 170 | 172.5 | |
| Seat Post | 300 | 300 | 300 | 400 | 400 |
