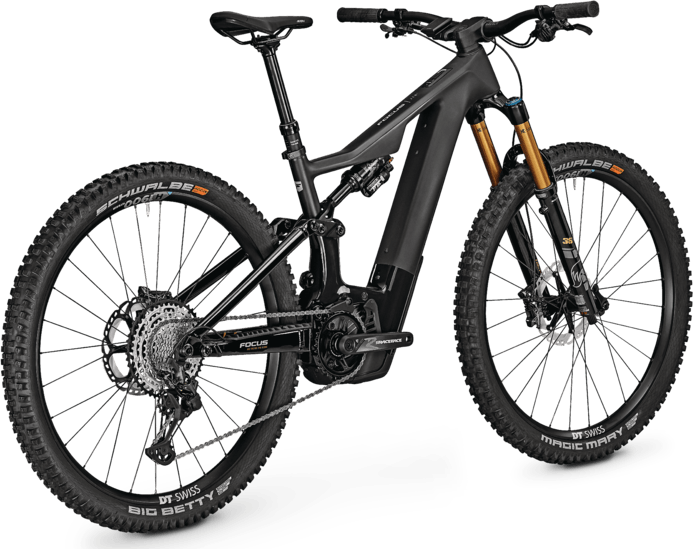

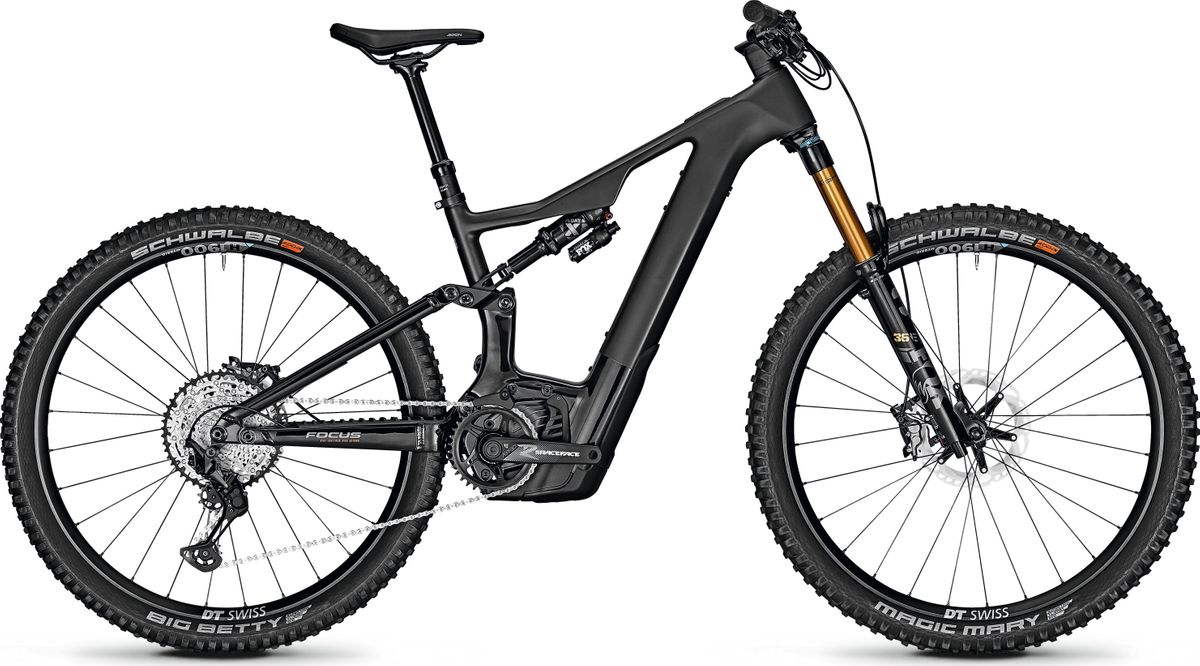

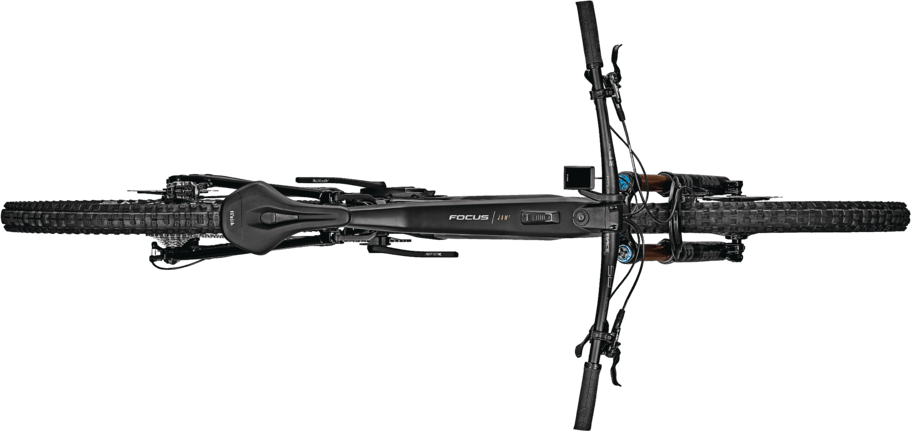

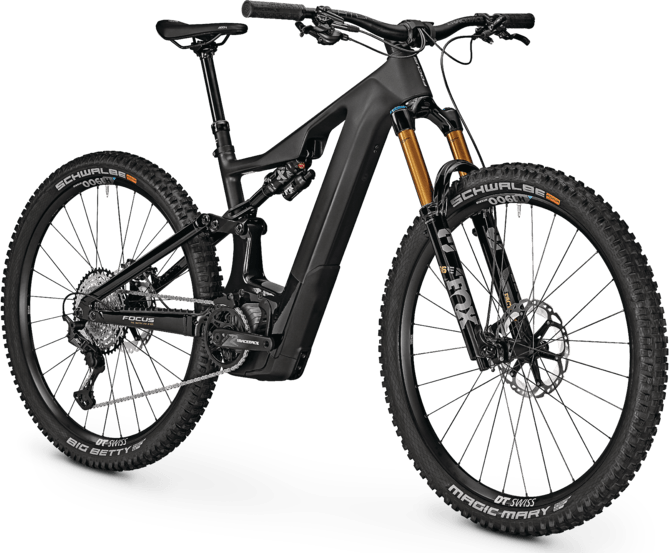

2023 Focus JAM2 8.0 BOSCH
Description
- LIMITED BOSCH CX RACE E-DRIVE & 750 WH BATTERY
- 160 MM FOX 36 FACTORY FORK & 150 MM FOX X PERFORMANCE SHOCK
- SHIMANO XT 1X12 PLUS DT SWISS H1900 WHEELS
CONQUERS NEW MOUNTAINS
EVEN STRONGER AND LIGHTER: LIMITED BOSCH PERFORMANCE LINE CX RACE E-DRIVE
The Bosch Performance Line CX RACE e-drive weighs only 2.75 kg and is the lightest of all Bosch drive units. It features 85 Nm and an exclusive race mode for powerful acceleration and high speeds that impresses with energetic, direct support – with 400 per cent of your pedal power. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery. The JAM² 8.0 features the Bosch System Controller, wireless Mini Remote and Kiox display.
GEOMETRY FOR MAXIMUM FUN ON ALL TYPES OF TRAILS
The carbon frame with alloy chainstays makes the JAM² 8.0 light and nimble. Battery and drive unit are perfectly integrated into the e-MTB's frame giving it a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the JAM² 8.0 more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 8.0 according to your riding preferences from 65.5° to 64.5°.
FULL CONTROL IN ANY SITUATION
When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 8.0, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.
| FRAME | Carbon front triangle, aluminium rear triangle, 150 mm F.O.L.D. GEN2 kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm |
| FORK | FOX 36 Float Factory 29, Grip 2, 110 x 15 mm, 44 mm rake |
| TRAVEL OF SUSPENSION FORK | 160 mm |
| SHOCK | FOX Float X Performance, 210/55 mm, hardware: 25,0 x 8.0, no Bushing |
| MOTOR | Bosch Performance Line CXR Smart System, 36 V / 250 W / 85 Nm |
| BATTERY WATT-HOURS | 750 Wh |
| BATTERY AMPERE HOURS | 20.8 Ah |
| DISPLAY | Bosch System Controller + Mini Remote + Kiox 300 |
| SHIFTER | Shimano Deore XT M8100, 12-speed |
| REAR DERAILLEUR | Shimano Deore XT M8100, 12-speed |
| SPROCKET | Shimano SLX M7100, 12-speed |
| CHAIN | Shimano SLX CN-M7100, 12-speed |
| CRANKSET | RaceFace Aeffect R e-Optimized Bosch G4 |
| TRANSMISSION OF DRIVE | Front: 36T; Rear: 10-51T |
| BOTTOM BRACKET | Integrated in Drive Unit |
| HANDLEBAR | RaceFace Atlas 35, aluminium, 820 mm, rise: 35 mm, backsweep: 8° |
| STEM | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium |
| HEADSET | ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8° angle headset |
| SADDLE | Fizik Terra Aidon |
| SEATPOST | Post Moderne dropper post PM-214, 34.9 mm |
| BRAKE CALIPER | Shimano XT M8120, 4 piston |
| BRAKE LEVER | Shimano XT M8120, 4 piston |
| BRAKE | Disc |
| WHEELSET | DT SWISS H1900, 30-622, 15x110 mm / 12x148 mm |
| TIRES | Schwalbe Magic Mary, 2.6 Super Trail Soft, 65-622 |
| REAR TIRE | Schwalbe Big Betty, 2.6 Super Trail Soft, 65-622 |
| GEARS | 12 |
| BIKE WEIGHT INCL. BATTERY IN KG | 23.4 |
| SIZE | S, M, L, XL |
Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
