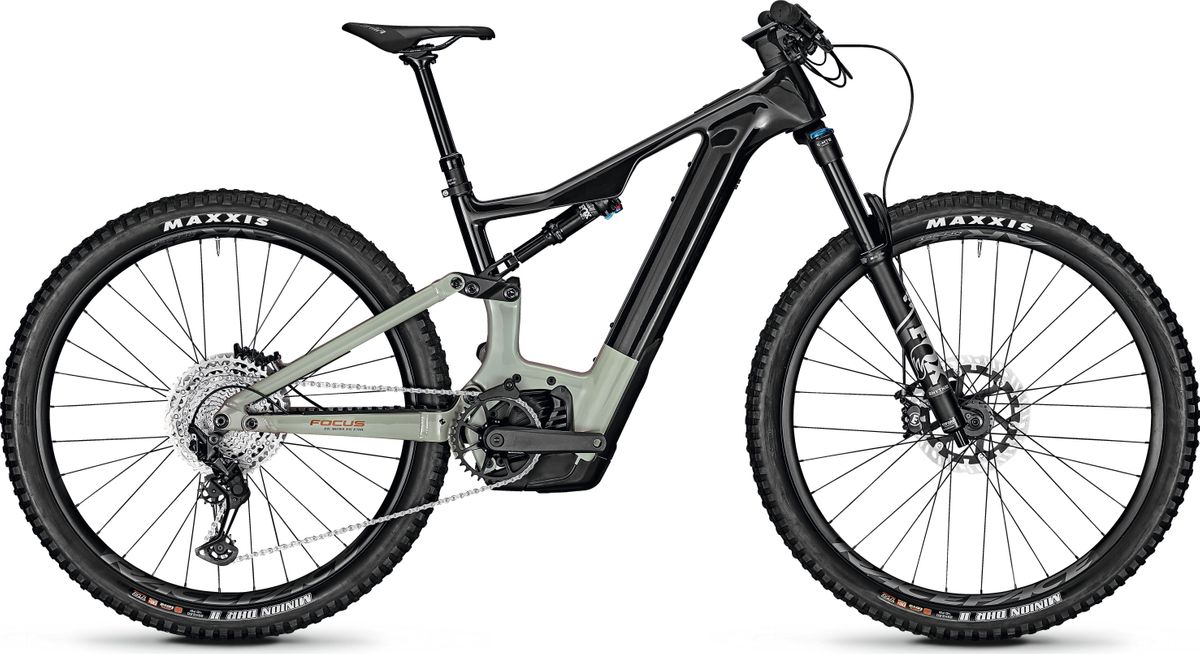

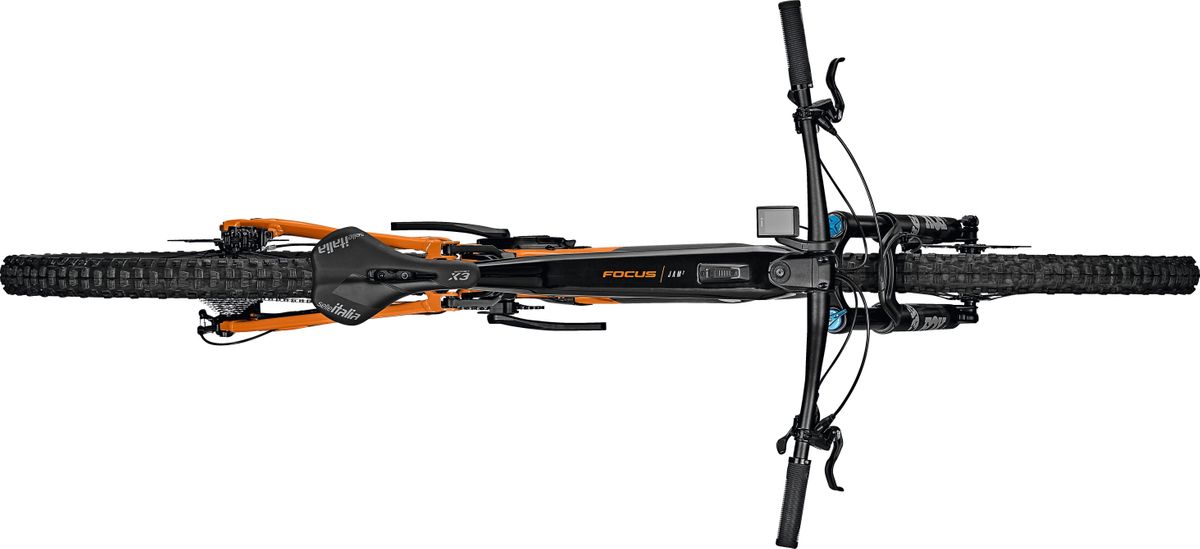

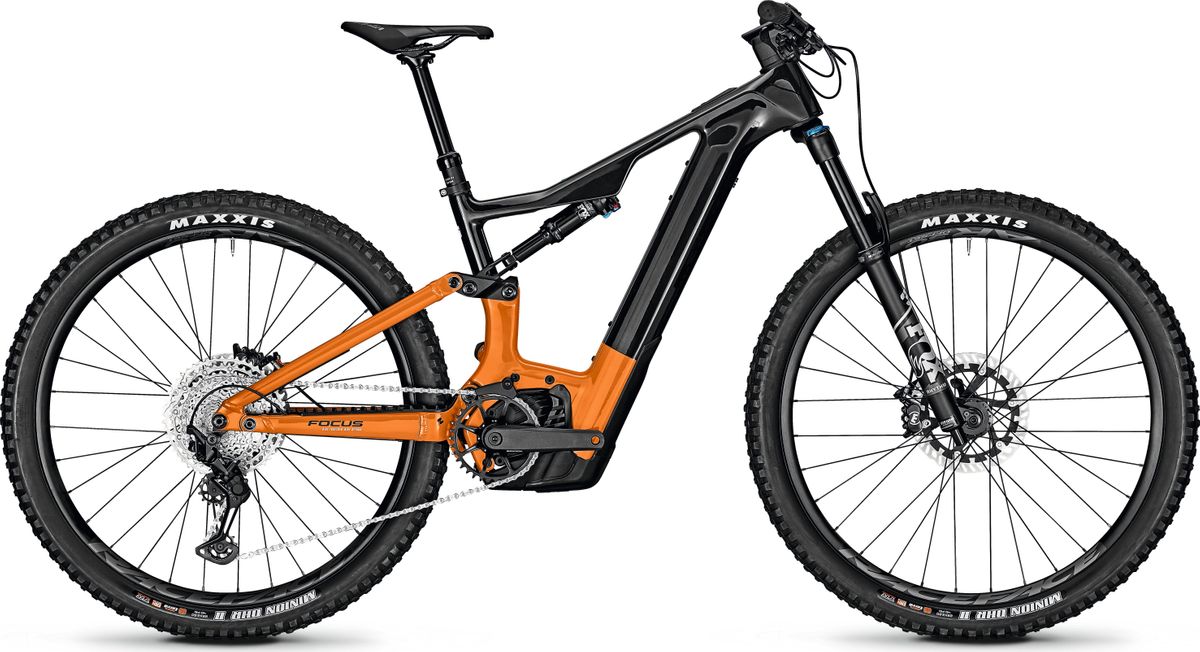

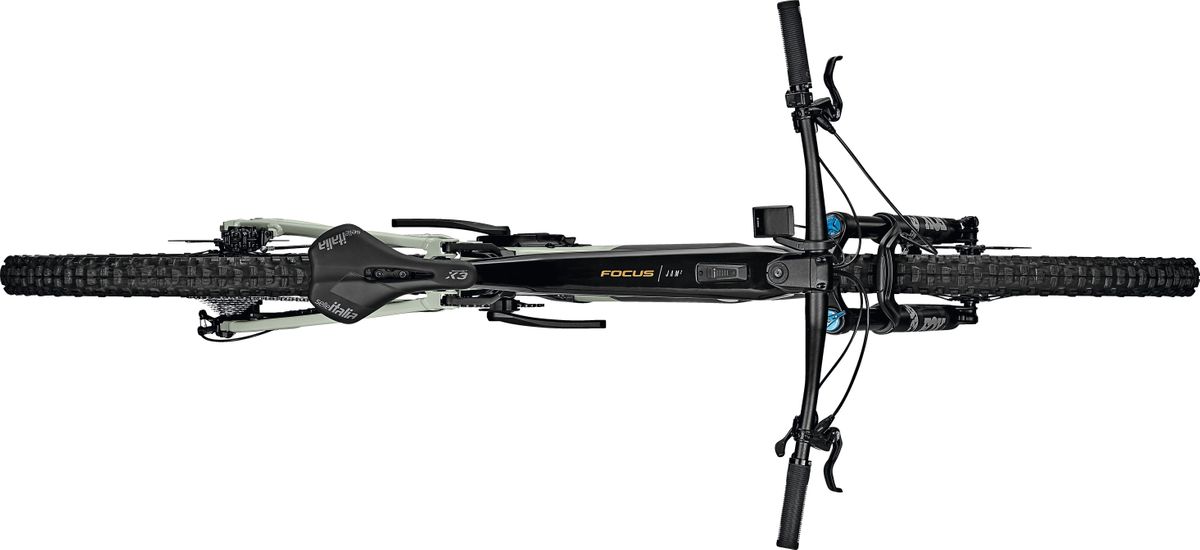

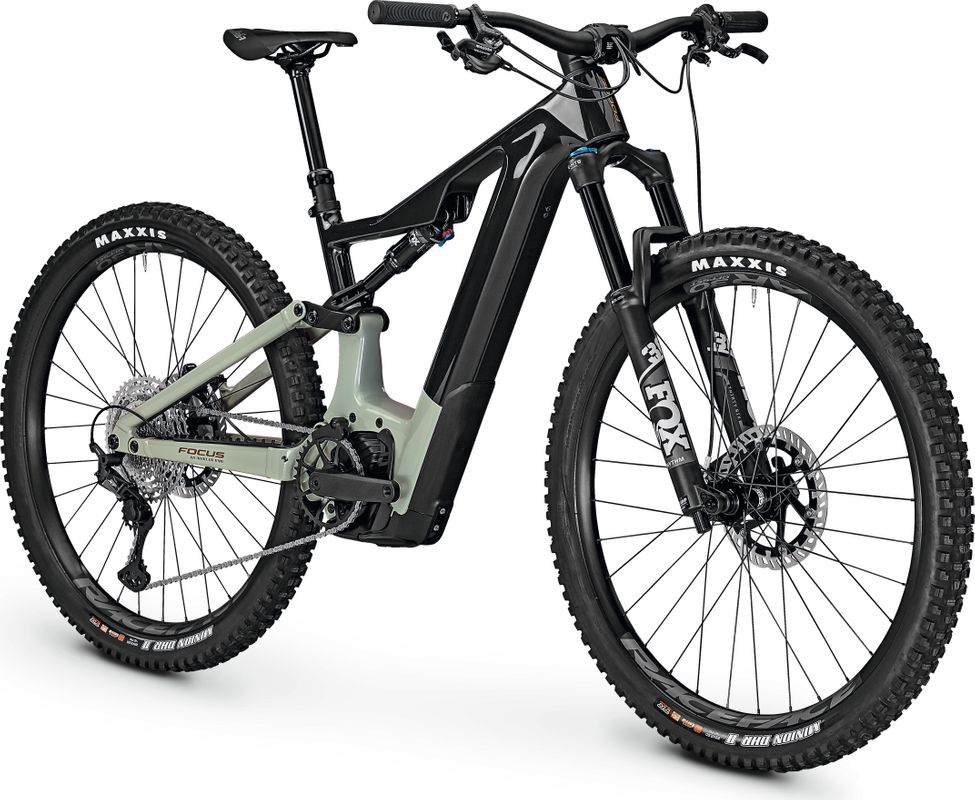

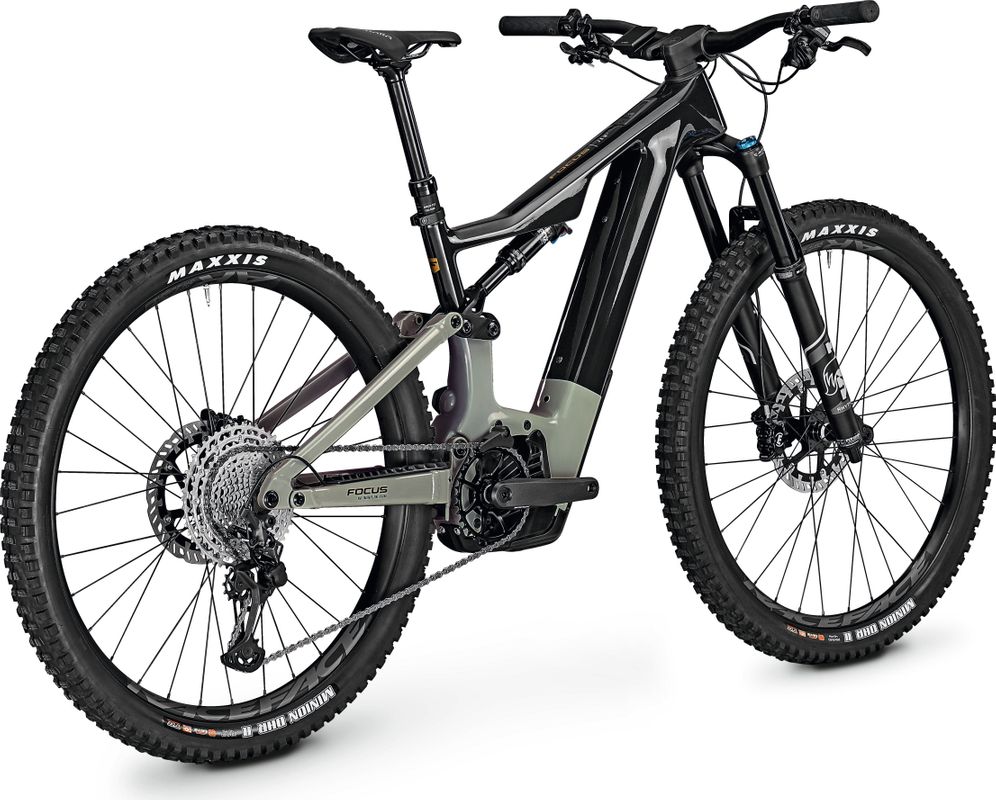

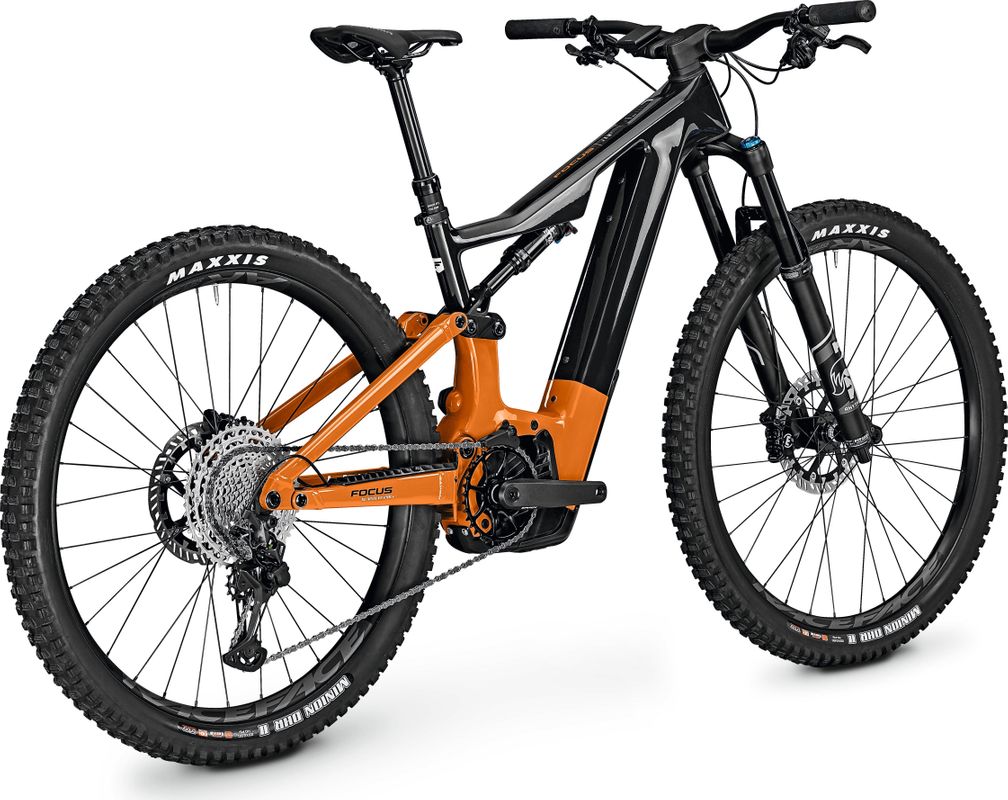

2023 Focus JAM2 8.8 BOSCH
Description
- BOSCH SMART SYSTEM WITH PERFORMANCE CX E-DRIVE, SYSTEM CONTROLLER WITH KIOX 300 DISPLAY AND 750 WH BATTERY
- 160 MM TRAVEL FOX 36 RHYTHM SUSPENSION FORK AND 150 MM F.O.L.D. KINEMATICS MIT FOX DPS REAR SHOCK
- RELIABLE AND PRECISE SHIMANO XT 1X12 SHIFTING COMPONENTS AND STRONG MAGURA MT5 BRAKES PLUS FULLY INTEGRATED C.I.S. CABLE ROUTING
CONQUERS NEW MOUNTAINS
SUPER POWERFUL AND DYNAMIC BOSCH PERFORMANCE LINE CX E-DRIVE
Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the JAM² 8.8 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 750 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery. The JAM² 8.8 features the Bosch System Controller, wireless Mini Remote and Kiox display.
GEOMETRY FOR MAXIMUM FUN ON ALL TYPES OF TRAILS
The carbon frame with alloy chainstays makes the JAM² 8.8 light and nimble. Battery and drive unit are perfectly integrated into the e-MTB's frame giving it a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the JAM² 8.8 more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 8.8 according to your riding preferences from 65.5° to 64.5°.
FULL CONTROL IN ANY SITUATION
When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 8.8, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.
| FRAME | Carbon front triangle, aluminium rear triangle, 150 mm F.O.L.D. GEN2 kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm |
| FORK | FOX 36 Float Rhythm 29 E-Bike, Grip, 110 x 15 mm, 44 mm rake |
| TRAVEL OF SUSPENSION FORK | 160 mm |
| SHOCK | FOX Float DPS, 210 / 55 mm, hardware: 25.0 x 8.0 mm, no Bushing |
| MOTOR | Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm |
| BATTERY WATT-HOURS | 750 Wh |
| BATTERY AMPERE HOURS | 20.8 Ah |
| DISPLAY | Bosch System Controller + Mini Remote + Kiox 300 |
| SHIFTER | Shimano Deore XT SL-M8100, 12-speed |
| REAR DERAILLEUR | Shimano Deore XT M8100, 12-speed |
| SPROCKET | Shimano Deore CS-M6100, 12-speed |
| CHAIN | Shimano Deore CN-M6100, 12-speed |
| CRANKSET | Samox EC40 ISIS |
| TRANSMISSION OF DRIVE | Front: 36T, Rear: 10-51T |
| BOTTOM BRACKET | Integrated in Drive Unit |
| HANDLEBAR | Aluminium, 800 mm, rise: 30 mm, backsweep: 9° |
| STEM | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium |
| HEADSET | ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset |
| SADDLE | Selle Italia X3 |
| SEATPOST | Post Moderne dropper post PM-214, 34.9 mm |
| BRAKE CALIPER | Magura MT5, hydraulic disc brake |
| BRAKE LEVER | Magura MT5 |
| BRAKE | Disc |
| RIMS | RaceFace AR30 Offset |
| REAR HUB | Novatec D462, 12x148 mm |
| FRONT HUB | Novatec D041, 15x110 mm |
| TIRES | Maxxis Minion DHR II, 2.6, 66-622, Maxxis Minion DHR II, 2.6, 66-622, EXO+ |
| GEARS | 12 |
| BIKE WEIGHT INCL. BATTERY IN KG | 24.0 |
| SIZE | S, M, L, XL |
Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
