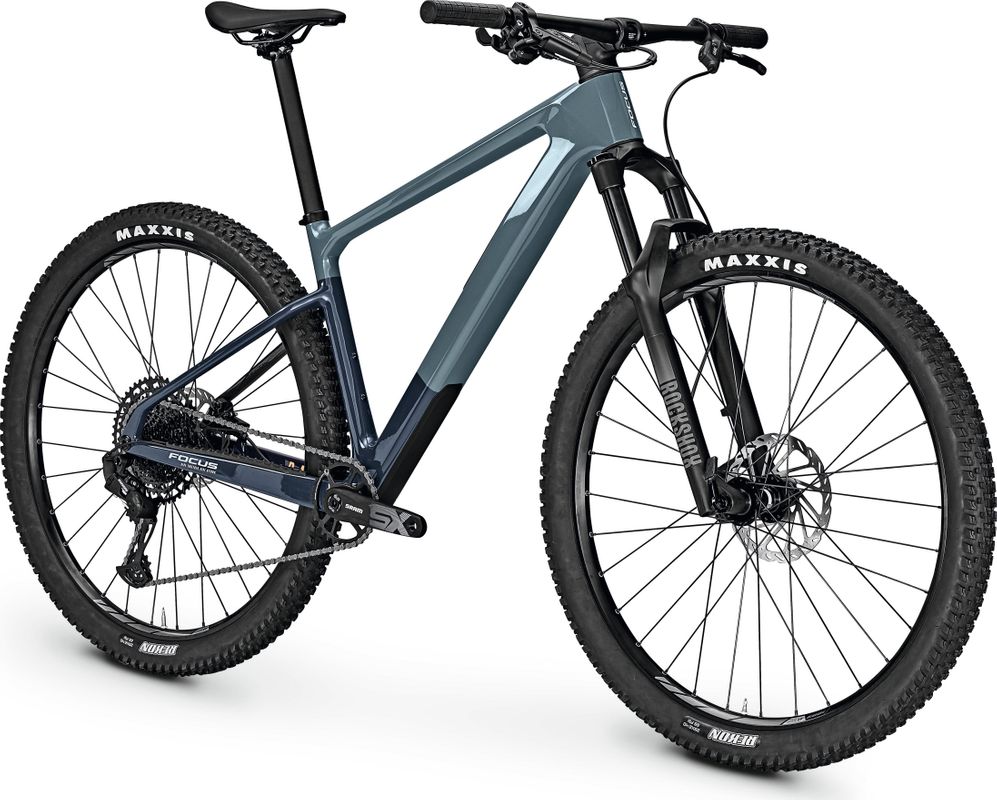

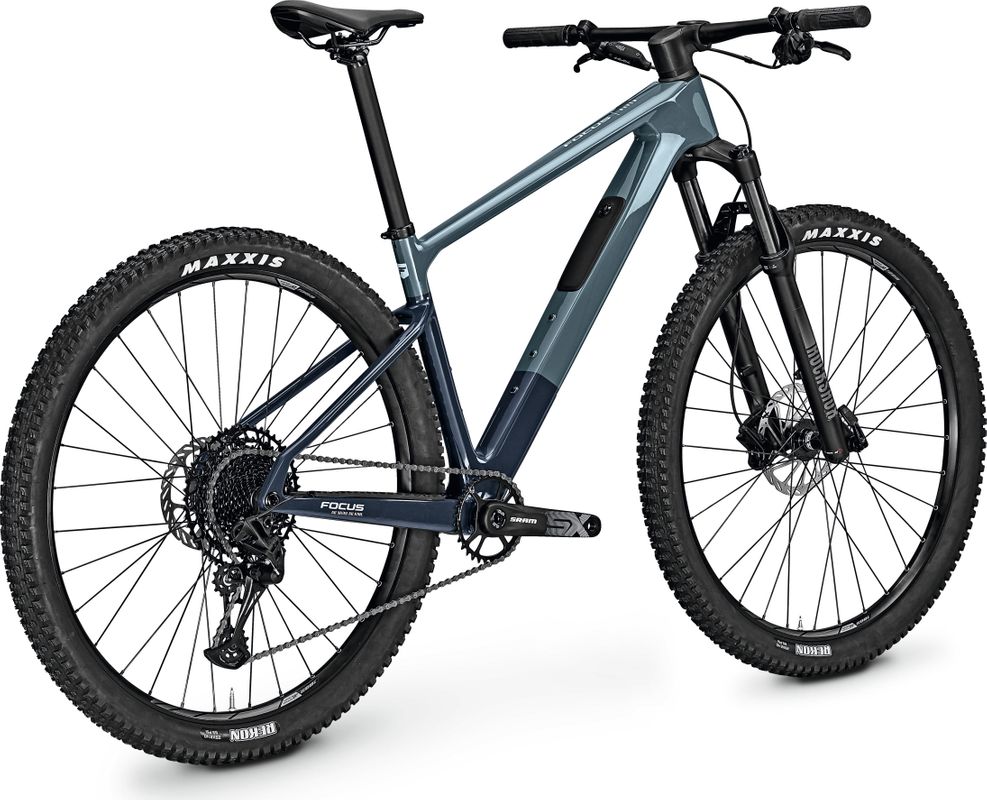

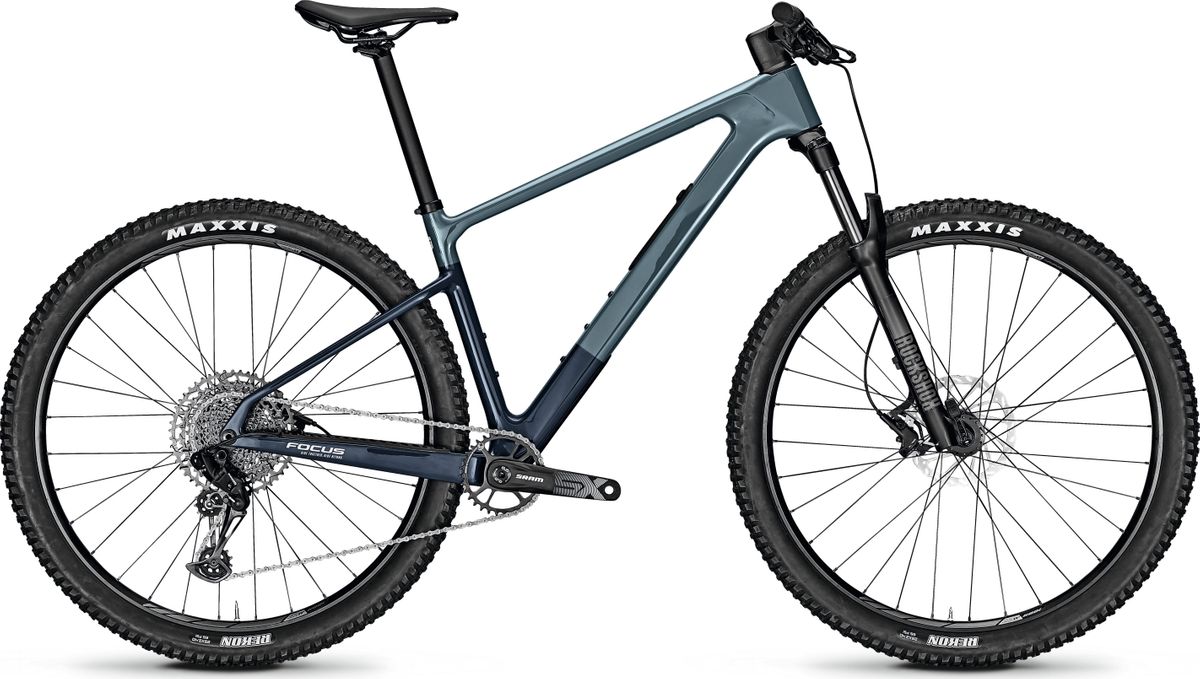

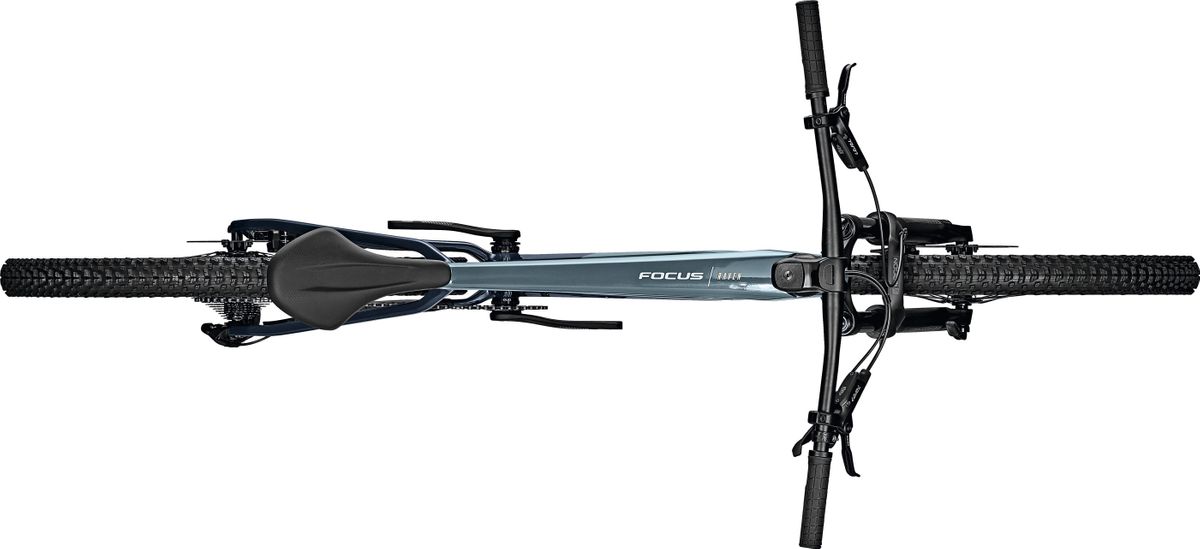

2023 Focus RAVEN 8.7
Description
- LIGHT CARBON FRAME, I.C.S. INTEGRATION WITH ACCESSORY BAG AND HEAD ANGLE ADJUSTMENT
- BALANCED ROCKSHOX JUDY TK AIR SUSPENSION FORK WITH 120 MM TRAVEL
- FULLY INTEGRATED C.I.S. CABLE ROUTING WITH HIGH-PERFORMANCE SRAM SX EAGLE GROUPSET AND DURABLE RODI TRYP25 WHEELS
OUR INTERPRETATION OF CROSS-COUNTRY
LIGHT CARBON FRAME WITH I.C.S. INTEGRATION
The light carbon frame makes the new RAVEN 8.7 as stiff as necessary and as comfortable as possible. A smart internal compartment solution (I.C.S.) in your downtube offers space for your essential tools.
FUN OFF AND ON THE TRAILS
A shorter stem and longer top tube give this fast hardtail mountain bike with 120 mm travel a more direct steering response with increased stability. With its wide 2.4" tyres, the RAVEN 8.7 is not only fun downhill, but also very comfortable. But not just that: The RAVEN 8.7 offers all-around fun riding making even the way to the trail a great and fast riding experience.
HEAD ANGLE ADJUSTMENT
By turning the headset cups, you can easily change the head angle of your RAVEN 8.7 from 66.5° to 67.5°. A steeper angle provides a more agile setting. The slacker position is more stable and downhill-oriented.
| FRAME | Carbon technology frame, BSA, 148x12 mm thru axle, internal cable routing, cockpit integration solution C.I.S., internal compartment Solution I.C.S., angle headset, Post Mount 160 mm |
| FORK | Rock Shox Judy Silver TK 29, 110x15 mm, 46 mm rake |
| TRAVEL OF SUSPENSION FORK | 120 mm |
| SHIFTER | SRAM SX Eagle, 12-speed |
| REAR DERAILLEUR | SRAM SX Eagle, 12-speed |
| SPROCKET | SRAM PG-1230 NX Eagle, 12-speed |
| CHAIN | SRAM SX Eagle, 12-speed |
| CRANKSET | SRAM SX Eagle |
| TRANSMISSION OF DRIVE | Front: 32T, Rear: 11-50T |
| BOTTOM BRACKET | BSA |
| HANDLEBAR | Aluminium, 760 mm, rise: 25 mm, backsweep: 9°, 31.8 mm |
| STEM | FOCUS C.I.S. integrated, 31.8 mm, aluminium |
| HEADSET | ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset |
| SADDLE | Selle Royal Groove |
| SEATPOST | Aluminium, 31.6 mm |
| BRAKE CALIPER | SRAM Level |
| BRAKE LEVER | SRAM Level |
| BRAKE | Disc |
| RIMS | RODI TRYP25, 25-622 |
| REAR HUB | Novatec D462, 12x148 mm |
| FRONT HUB | Novatec D041, 15x110 mm |
| TIRES | Maxxis Rekon, 61-622, 3C |
| GEARS | 12 |
| BIKE WEIGHT IN KG | 13.4 |
| SIZE | S, M, L, XL |
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
