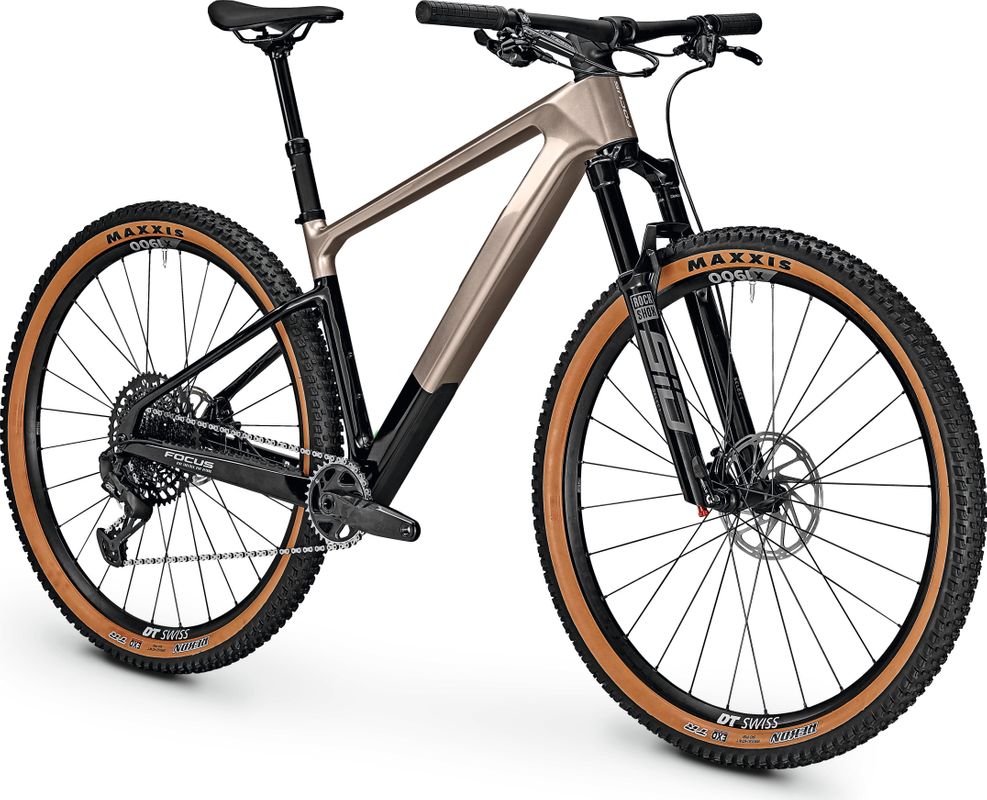

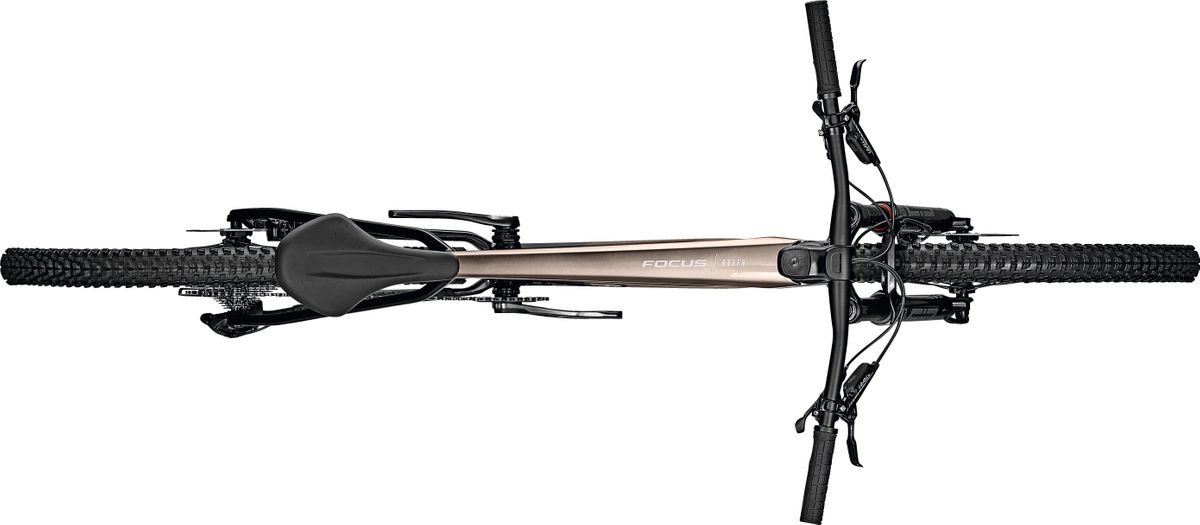

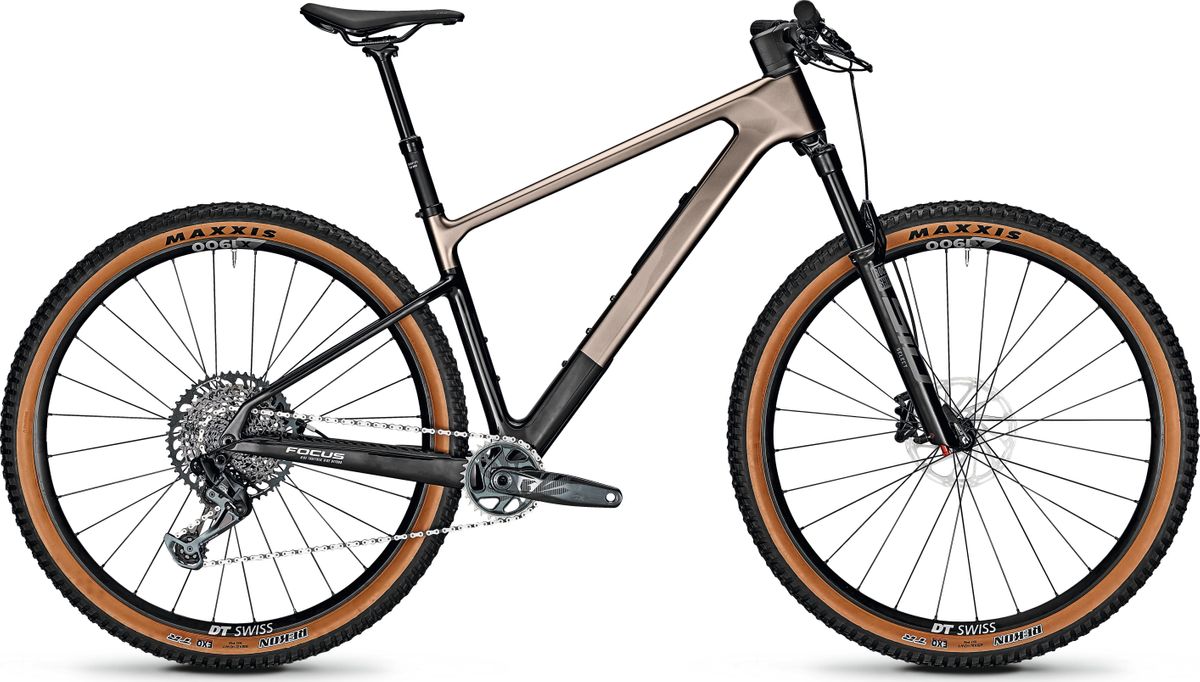

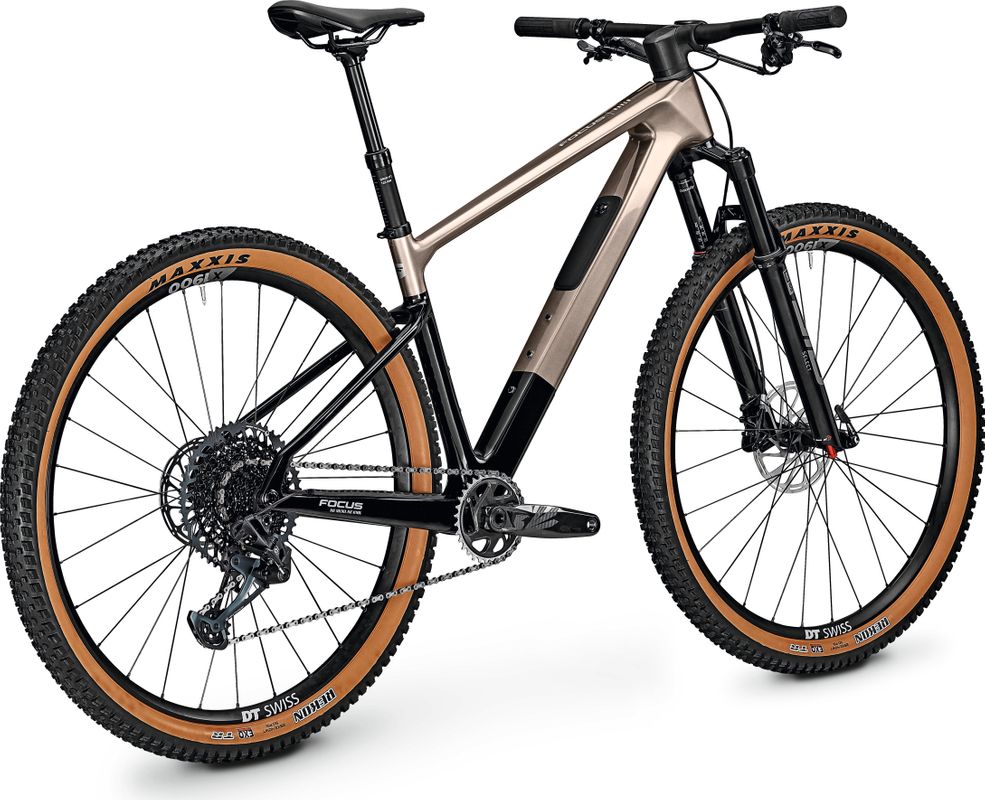

2023 Focus RAVEN 8.9
Description
- CARBON FRAME, DROPPER POST & HEAD ANGLE ADJUSTMENT
- 120 MM ROCKSHOX SID SELECT 3P SUSPENSION FORK
- SRAM GX EAGLE 52
OUR INTERPRETATION OF CROSS-COUNTRY
LIGHT CARBON FRAME WITH I.C.S. INTEGRATION
The light carbon frame makes the new RAVEN 8.9 as stiff as necessary and as comfortable as possible. A smart internal compartment solution (I.C.S.) in your downtube offers space for your essential tools.
FUN OFF AND ON THE TRAILS
A shorter stem and longer top tube give this fast hardtail mountain bike with 120 mm travel a more direct steering response with increased stability. With its wide 2.4" tyres, the RAVEN 8.9 is not only fun downhill, but also very comfortable. But not just that: The RAVEN 8.9 offers all-around fun riding making even the way to the trail a great riding experience.
HEAD ANGLE ADJUSTMENT AND TRAIL-READY AT THE PUSH OF A BUTTON
The new RAVEN 8.9 comes with a dropper post (S & M = 125 mm, L = 150 mm, XL = 170 mm travel) so you are ready for the descents at the push of a button. By turning the headset cups, you can easily change the head angle of your RAVEN 8.9 from 66.5° to 67.5°. A steeper angle provides a more agile setting. The slacker position is more stable and downhill-oriented.
| FRAME MATERIAL | Carbon |
| FRAME | Carbon technology frame, BSA, 148x12 mm thru axle, internal cable routing, cockpit integration solution C.I.S., internal compartment Solution I.C.S., angle headset, Post Mount 160 mm |
| FORK | Rock Shox SID Select 29, 110x15 mm, 44mm rake |
| TRAVEL OF SUSPENSION FORK | 120 mm |
| SHIFTER | SRAM GX Eagle, 12-speed |
| REAR DERAILLEUR | SRAM GX Eagle, 12-speed |
| SPROCKET | SRAM XG-1275, 12-speed |
| CHAIN | SRAM GX Eagle, 12-speed |
| CRANKSET | SRAM GX Eagle |
| TRANSMISSION OF DRIVE | Front: 32T, Rear: 10-52T |
| BOTTOM BRACKET | BSA |
| HANDLEBAR | Aluminium, 760 mm, rise: 25 mm, backsweep: 9°, 31.8 mm |
| STEM | FOCUS C.I.S. integrated, 31.8 mm, aluminium |
| HEADSET | ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset |
| SADDLE | Selle Royal Groove |
| SEATPOST | Post Moderne dropper post PM-MT171, 31.6 mm |
| BRAKE CALIPER | SRAM Level TLM |
| BRAKE LEVER | SRAM Level TLM |
| BRAKE | Disc |
| WHEELSET | DT Swiss X1900, 25-622, 15x110 mm / 12x148 mm, 25 mm height |
| TIRES | Maxxis Rekon Race, 61-622, 3C |
| GEARS | 12 |
| BIKE WEIGHT IN KG. | 11.6 |
| SIZE | S, M, L, XL |
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
