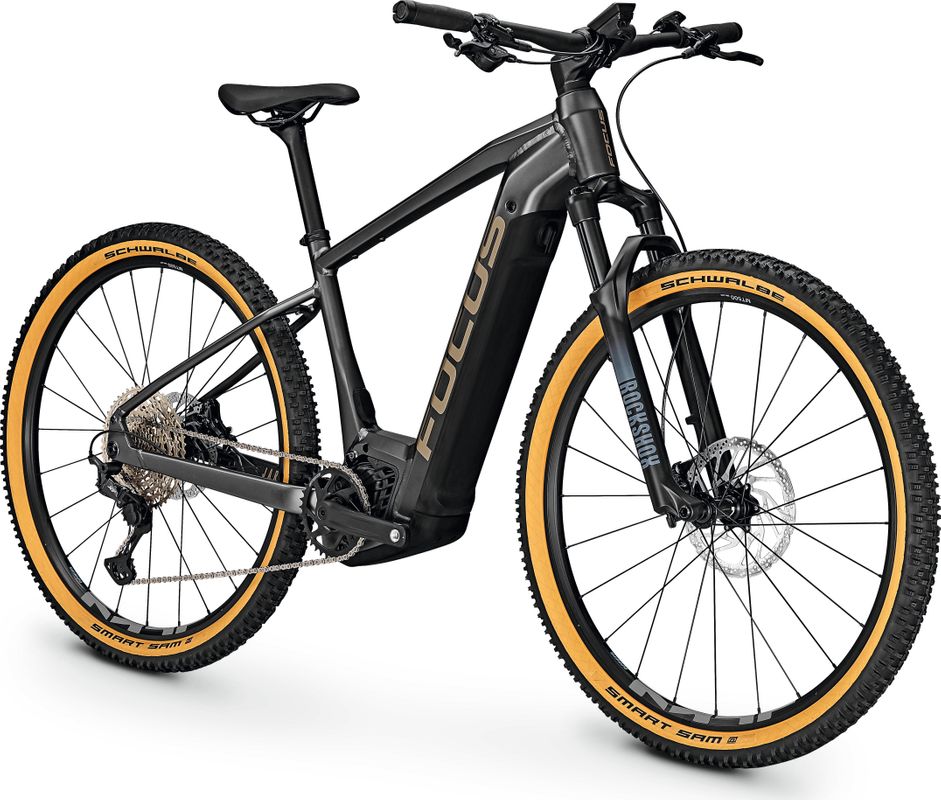

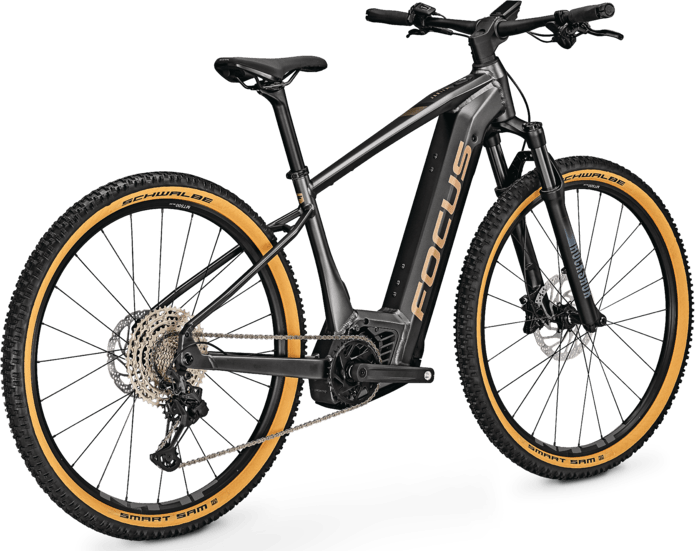

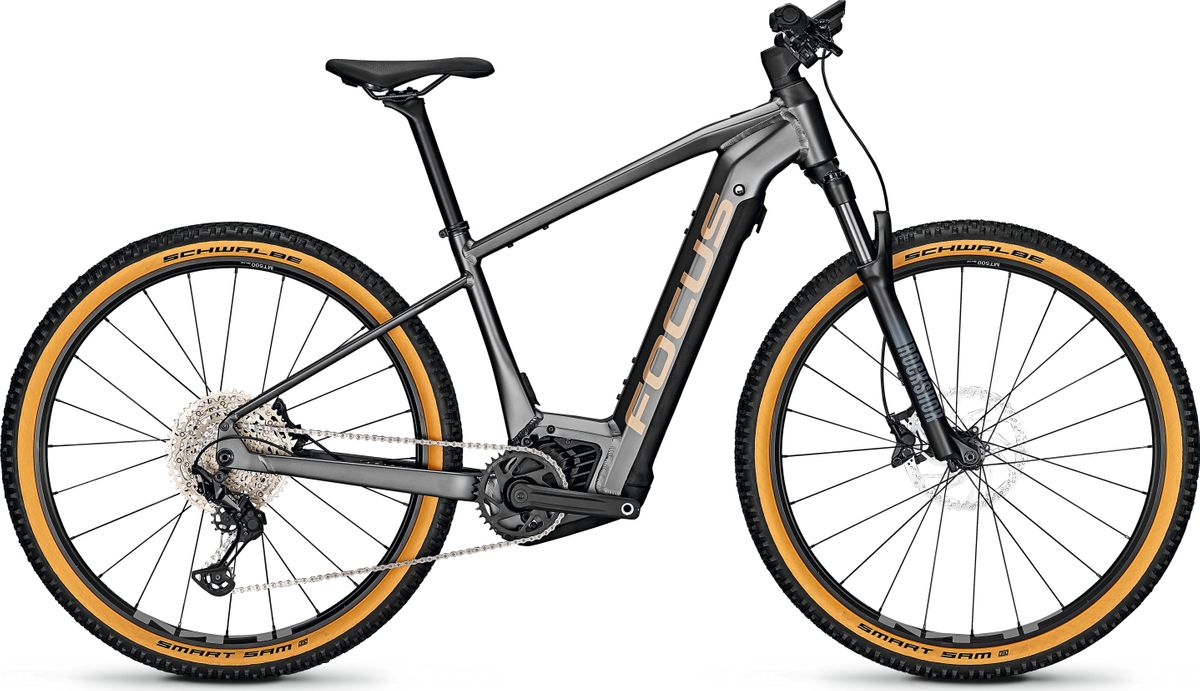

2023 Focus JARIFA2 6.9 BOSCH
Description
- CUSTOMISABLE BOSCH SMART SYSTEM WITH PERFORMANCE CX E-DRIVE, KIOX 300 DISPLAY AND 750 (SIZE XS AND S: 625) WH BATTERY
- OFFROAD-READY MOUNTAIN BIKE GEOMETRY WITH 29" WHEELS (SIZE XS: 27,5") AND PRECISE SHIMANO XT 12-SPEED REAR DERAILLEUR
- COMFORTABLE COCKPIT, C.I.S. STEM WITH INTEGRATED CABLE ROUTING, SR SUNTOUR RAIDON LOR AIR SUSPENSION FORK AND 4-PISTON BRAKES
ESCAPE THE DAILY GRIND
SUPER POWERFUL AND DYNAMIC E-MOTOR
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. A well-balanced geometry makes the JARIFA² ride agile and dynamic. The strongest e-motor of Bosch is perfectly integrated into the bottom bracket area.
RECORD-BREAKING INTEGRATED RANGE AND A NEW DISPLAY
The new Bosch Powertube battery (smart system) with its record-breaking 750 Wh (size XS and S: 625 Wh) is perfectly integrated into the down tube, yet it can also be removed at any time for charging. Furthermore, the latest Kiox 300 offers a bigger, easier-to-read display with a new remote and better ergonomics. Additionally, a USB-C port on the top tube gives you the opportunity to charge your devices.
EXTRA-COMFORTABLE, INTEGRATED AND EASY TO RETROFIT
The JARIFA² combines MTB and trekking DNA. The cockpit with a 30-degree stem and ergonomic parts make your ride comfortable even on rides off the beaten track. The C.I.S. (Cockpit Integration Solution) technology offers a clean cockpit with cable routing through stem and headset into the frame. Additionally, the JARIFA² can be retrofitted easily thanks to respective mounting points. On top, the JARIFA² 6.9 is approved for most trailers and for a system weight (rider plus gear and bike) of 150 kg. Considering the needs of smaller riders, the JARIFA² models in size XS roll on 27,5" wheels.
| FRAME MATERIA | Aluminium |
| FRAME | 7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, USB-C port, post mount 180 mm |
| FORK | SR Suntour Raidon 34 LOR AIR, 110x15 mm |
| TRAVEL OF SUSPENSION FORK | 100 mm |
| MOTOR | Bosch Performance CX Smart, 85 Nm, 250 W |
| BATTERY WATT-HOURS | 625 Wh (XS, S), 750 Wh (M, L, XL) |
| BATTERY AMPERE HOURS | 17.4 Ah (XS, S), 20.8 Ah (M, L, XL) |
| DISPLAY | Bosch LED Remote + Kiox 300 |
| SHIFTER | Shimano Deore M6100, 12-speed |
| REAR DERAILLEUR | Shimano Deore XT M8100, 12-speed |
| SPROCKET | Shimano Deore CS-M6100, 12-speed |
| CHAIN | Shimano Deore CN-M6100, 12-speed |
| CRANKSET | FSA CK-320, aluminium |
| TRANSMISSION OF DRIVE | Front: 36T, Rear: 10-51T |
| BOTTOM BRACKET | Integrated in Drive Unit |
| HANDLEBAR | Aluminium, 760 mm, flatbar, backsweep: 9°, 35,0 mm |
| STEM | FOCUS C.I.S. integrated, 60 mm, 30°, 35 mm, aluminium |
| HEADSET | ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated |
| SADDLE | Selle Royal Vivo |
| SEATPOST | Aluminium, 31.6 mm |
| BRAKE CALIPER | Shimano MT420, 4-piston, hydraulic disc brake |
| BRAKE LEVER | Shimano MT420 |
| BRAKE | Disc |
| WHEELSET | Shimano WH-MT501, 24-622, 15x110 mm / 12x148 mm |
| TIRES | Schwalbe Smart Sam 2.25, 57-622,Schwalbe Smart Sam, 57-584 (XS only) |
| GEARS | 12 |
| BIKE WEIGHT INCL. BATTERY IN KG | *27.2, 24.5 kg |
| SHIFTING TYPE | Mechanical shifting |
| SIZE | XS, S, M, L, XL |
Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
