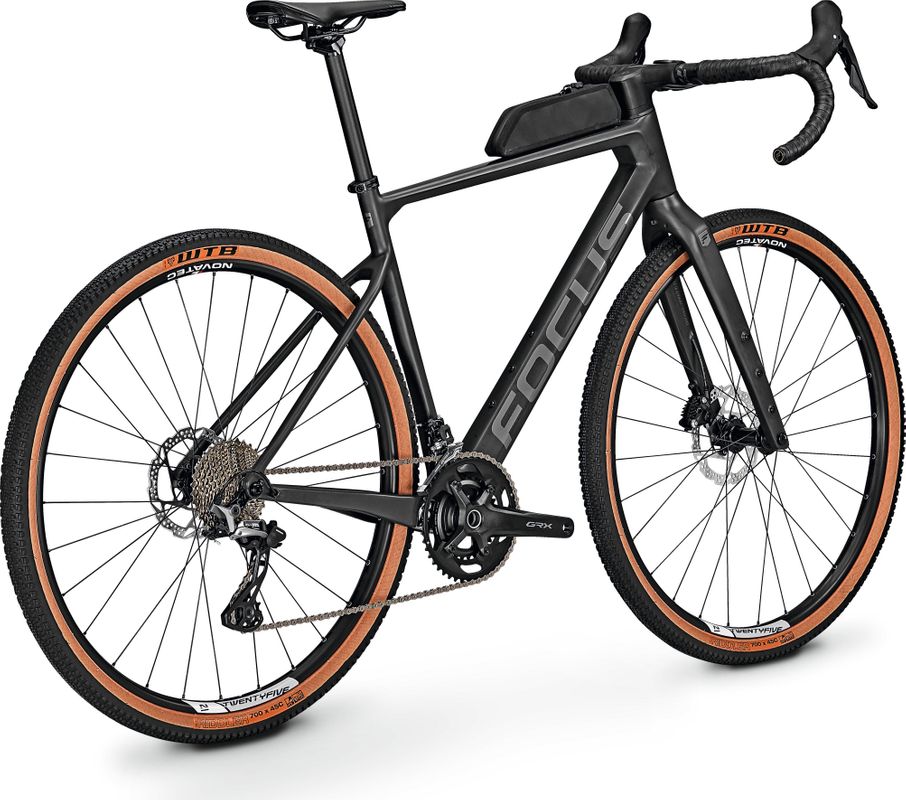

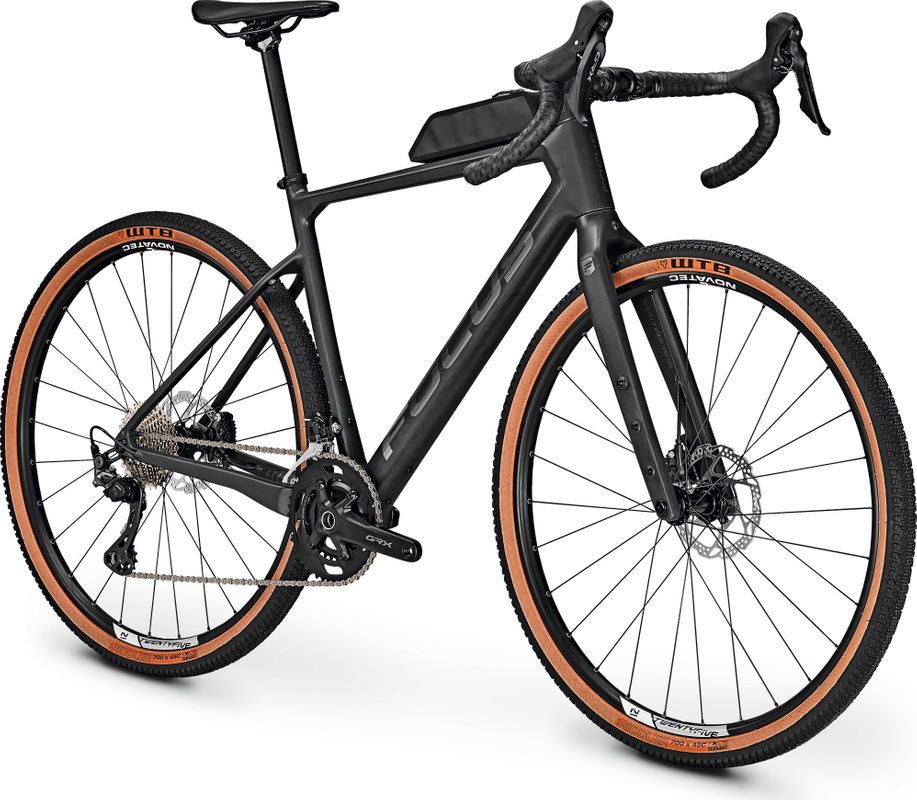

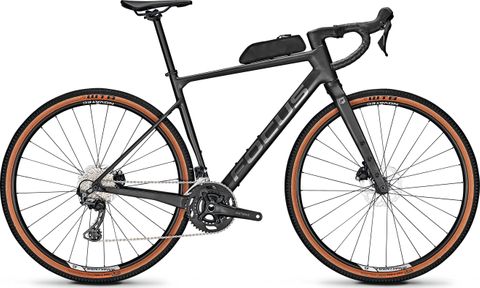

2023 Focus ATLAS 8.7
Description
- LIGHT CARBON FRAME AND CLEAN-LOOKING COCKPIT WITH INTEGRATED C.I.S. CABLE ROUTING
- SHIMANO GRX600 2X11 GROUPSET WITH SPECIAL GRAVEL ERGONOMICS FOR RELIABLE SHIFTING AND SAFE BRAKING EVEN ON ROUGH TERRAIN
- RELIABLE AND DEDICATED GRAVEL WHEELSET FOR STABILITY: NOVATEC 25 ELITE WHEELS WITH DOUBLE-SEALED HUBS
PUSHES BOUNDARIES
COMFORTABLE AND AGILE ON ANY TERRAIN
This light carbon bike weighs only 9.6 kg and is designed for your fast gravel escapes. Due to the combination of long reach and short stem, the ATLAS 8.7 is a rather long bike resulting in a really smooth ride. The front end provides confidence while going downhill. Super short chainstays make the gravel bike playful and agile, which will please all riders who like to tackle each other no matter the surface. To make sure that you can handle this fast bike perfectly, you can adjust the handlebar position according to your needs. The stem is available in six different lengths from 70 to 120 mm and the handlebar height can be changed with special two-piece spacers.
VARIOUS OPTIONS TO MOUNT EQUIPMENT
The ATLAS 8.7 frame offers many options to carry bags comfortably. You can easily attach a bar, saddle, or frame bag. The bike comes with our top tube bag in which you can store essential tools or snacks to eat while pedalling. For bottle cages, the carbon frame provides three more mounting possibilities. One bottle cage can be screwed at the seat tube and two more at the down tube – one above and one below. On top, the three screws on the fork’s left and right side offer two additional mounting points. Here you can install racks for further luggage or bottle cages. With a maximum system weight (bike, rider, and equipment) of 120 kg, this light carbon gravel bike allows you to take lots of stuff with you.
MADE FOR FAST GRAVEL ESCAPES
Thanks to fast-rolling and tubeless-ready 45 mm WTB Riddler tyres and Shimano GRX600 2x11 groupset with gravel-optimised transmission, the ATLAS 8.7 is built to accompany your bikepacking adventures. The wide handlebar with flare provides full control and comfort. The C.I.S. (Cockpit Integration Solution) technology ensures a clean look without any cables in the way when attaching a bar bag. Whether in bad weather conditions or on demanding surfaces, when suffering during steep climbs or going the really long distances – the ATLAS 8.7 fully supports your ride, even to the end of the world.
| FRAME | Carbon, disc, C.I.S. integration, press fit BB86, 148x12 mm thru-axle, flat mount 160/160 mm, internal cable routing, Toptube Bag |
| FORK | Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points |
| SHIFTER | Shimano GRX ST-RX600, 11-speed |
| FRONT DERAILLEUR | Shimano GRX FD-RX810 |
| REAR DERAILLEUR | Shimano GRX RD-RX810, 11-speed |
| SPROCKET | Shimano 105 R7000, 11-speed |
| CHAIN | Shimano CN-HG601, 11-speed |
| TRANSMISSION OF DRIVE | Front: 46/30T, Rear: 11-34T |
| BOTTOM BRACKET | Shimano Pressfit Road BB86 |
| HANDLEBAR | FOCUS JD RA85, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10° |
| STEM | FOCUS C.I.S. integrated, 31.8 mm, aluminium |
| HEADSET | ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S. |
| SADDLE | fi'zi:k Taiga |
| SEATPOST | Aluminium, 27.2 mm, 0 mm set-back |
| BRAKE CALIPER | Shimano GRX ST-RX400 + BR-RX400 |
| BRAKE LEVER | Shimano GRX BL-RX600, 11-speed |
| BRAKE | Disc |
| WHEELSET | Novatec 25 Elite, 25-622, disc, center lock | Front: 110x12 mm, Rear: 148x12 mm (BOOST) |
| TIRES | WTB Riddler, 700 x 45C, folding |
| GEARS | 22 |
| BIKE WEIGHT IN KG | 9.6 |
| SIZE | XS, S, M, L, XL |
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
