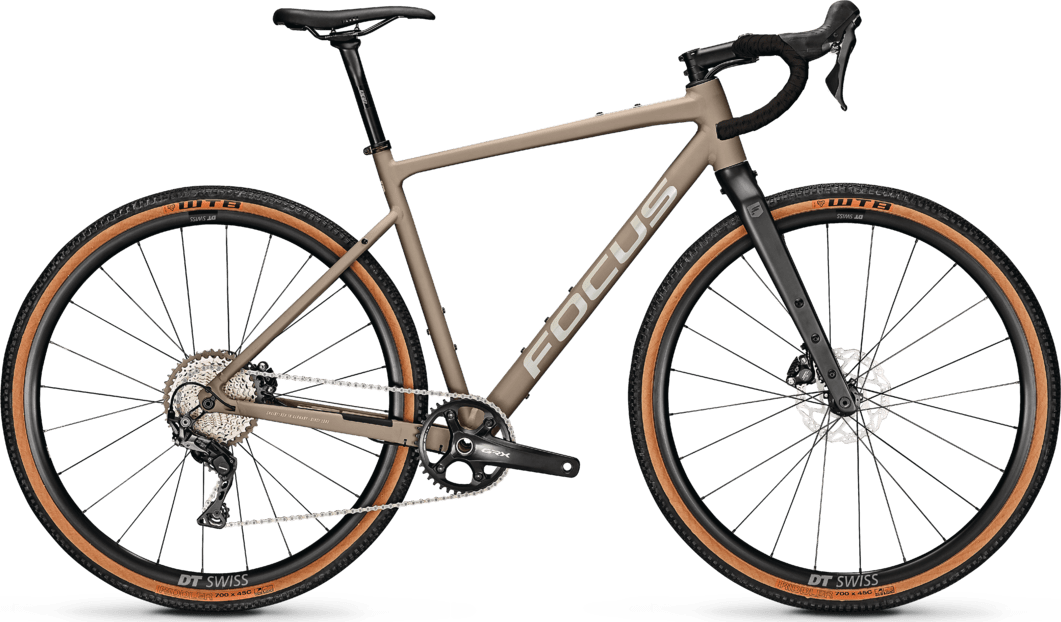

2023 Focus ATLAS 6.9
Description
- LIGHTWEIGHT AND ROBUST ALUMINIUM FRAME & CARBON FORK WITH INTEGRATED C.I.S. CABLE ROUTING AND TOP TUBE BAG, PLUS MOUNTING POINTS FOR EVERYTHING YOU NEED
- SHIMANO GRX810 1X11 GROUPSET WITH SPECIAL GRAVEL ERGONOMICS FOR PRECISE BRAKING AND SHIFTING WITH OPTIMISED GEAR RATIO
- MAXIMUM STABILITY AND HIGH QUALITY: DT SWISS GRAVEL LN ROAD BOOST WHEELS WITH DOUBLE-SEALED HUBS
PUSHES BOUNDARIES
COMFORT AND CONTROL ON ANY TERRAIN
Whether bad weather, demanding surface, steep climbs or long distances – the robust and comfortable gravel bike offers full control thanks to an adapted frame geometry, wide handlebars with flare and disc brakes. The clean cockpit with C.I.S. cable routing from the handlebar directly into the headset avoids any hustle when installing a handlebar bag. To climb every mountain even with equipment, the Shimano GRX810 gravel groupset comes with an extra-wide gear ratio but still providing the simplicity of an 1by drive.
HUGE TYRE CLEARANCE
The ATLAS comes with 700c tyres and can take tyre widths up to 47 mm, but is also 650b-ready with tyre clearance up to 51 mm. Therefore, you have plenty of opportunities to spec your ATLAS appropriate to your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the ATLAS fully supports your ride – even to the end of the world.
VARIOUS OPTIONS TO MOUNT EQUIPMENT
Five bottle cages can be mounted: On the seat tube, above the down tube, underneath the down tube and on each side of the fork. The position of the bottle cage above the down tube is adjustable to fit a frame bag. Additionally, it is possible to equip the ATLAS with various features thanks to many mounting options on the aluminium frame and carbon fork. The mounting points on the fork are approved for 3 kg each side and can also be used for carrying any other equipment. With every ATLAS 6.9, a top tube bag is included. It can store all your necessities that you need during the ride.
SPECIFICATIONS
| FRAME | Aluminium, disc, BSA, 148x12 mm thru axle, flat mount 160/160 mm, internal cable routing |
| FRAME MATERIAL | Aluminium |
| FORK | Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points |
| SHIFTER | Shimano GRX ST-RX800, 11-speed |
| REAR DERAILLEUR | Shimano GRX RD-RX812, 11-speed |
| SPROCKET | Shimano SLX |
| CHAIN | Shimano CN-HG601, 11-speed |
| CRANKSET | Shimano GRX FC-RX810, 11-speed |
| TRANSMISSION OF DRIVE | Front: 40T, Rear: 11-42T |
| BOTTOM BRACKET | BSA |
| HANDLEBAR | FOCUS JD RA85, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10° |
| STEM | Aluminium, 31,8 mm, 6° |
| HEADSET | ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S. |
| SADDLE | WTB SL8 |
| SEATPOST | BBB FlyPost SP-135, 27.2mm, set-back: 0mm, carbon |
| BRAKES | Shimano GRX ST-RX810 + BR-RX810 |
| BRAKE LEVER | Shimano GRX BL-RX810, 11-speed |
| BRAKE | Disc |
| WHEELSET | DT Swiss LN Gravel, 622/24, disc, center lock, front: 110x12 mm, rear: 148x12 mm |
| TIRES | WTB Riddler, 700 x 45C, folding |
| GEARS | 11 |
| BIKE WEIGHT | 10.60 kg |
| SIZE | XS, S, M, L, XL |
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
