3T Aeroflux LTD Stealth

Description

The Aeroflux is the ultimate combination of performance and comfort on the road. The newly developed wing shape creates less drag, while the internal cables exit the wing at an angle to ensure they lie tightly next to your stem. For ultimate comfort, the Aeroflux uses our most comfortable drop design, taken directly from the Superergo bars.

DROP GRIP: The gradual change in curvature makes the grips comfortable for hands of all sizes. The tighter top bend ensures the newest Shimano, SRAM and Campagnolo shift/brake levers align perfectly for a very comfortable hand position on the hoods.

CENTER WING: The Aeroflux aero wing cross section reduces drag where it matters most, at the from of your bike where the airflow is still undisturbed. Integrates nicely with the 3T APTO stem.

COMFORT EVERYWHERE: The wing is not only aerodynamic, it is also comfortable. The increased surface spreads the pressure across your hands and is especially suitable if you rest your thumb on top instead of wrapping it around the bars (Superergo is better for that).

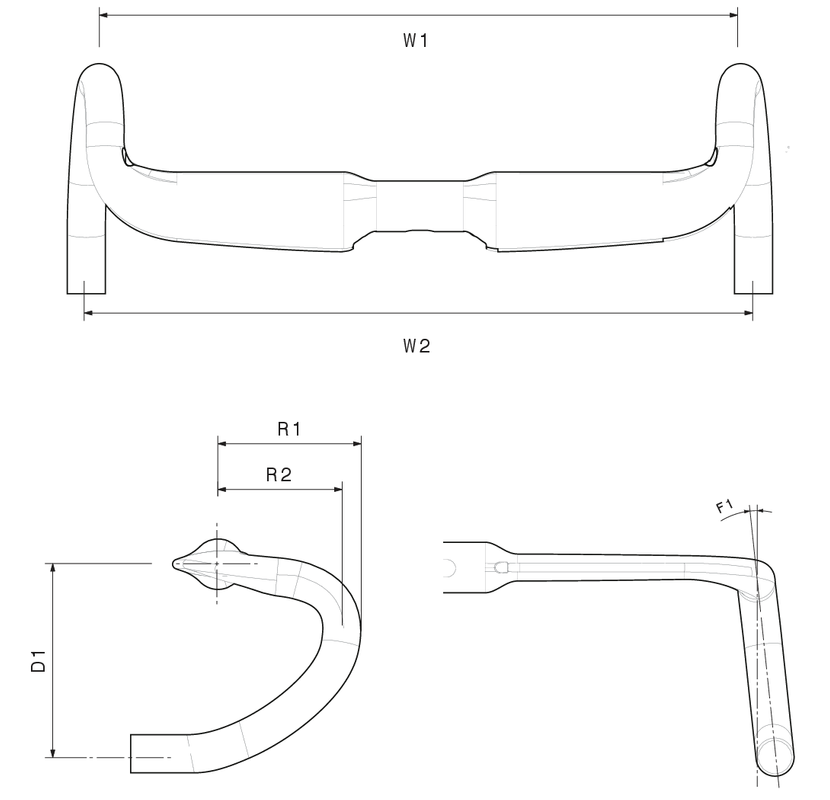

DIMENSIONS & WEIGHTS

W1 Hood-to-hood (mm) 380 400 420
W2 Drop-to-drop (mm) 400 420 440
R1 Reach (mm) 89 89 89
R2 Reach (mm) 77 77 77
D1 Drop (mm) 119 119 119
F1 Drop flare (degrees) 7.0 7.0 7.0
Weight LTD (+/-4%) (g) 223 226 229

SPECIFICATIONS

Material Unidirectional carbon - ultralight layup
Cable routing Internal cable channels
Clamp diameter 31.8mm
Stem torque 6Nm max. 4 bolt stem/ 8Nm max. 2 bolt stem
Shift/brake lever torque 8Nm maximum
Clip-ons Not compatible (this would require a longer round center section and increase aero drag)
Di2 compatibility Fully compatible, including with Di2 bar plug Junction A
Finish Stealth Black

Code Product Name Stock Your Price Quantity
BH3TAFLS-38
3T Handlebar Aeroflux Carbon LTD Stealth Road Aero 38cm c/c
Stock Level:
Please Enquire
Contact your local dealer for pricing and availability
BH3TAFLS-40
3T Handlebar Aeroflux Carbon LTD Stealth Road Aero 40cm c/c
Stock Level:
Please Enquire
Contact your local dealer for pricing and availability
BH3TAFLS-42
3T Handlebar Aeroflux Carbon LTD Stealth Road Aero 42cm c/c
Stock Level:
Please Enquire
Contact your local dealer for pricing and availability
